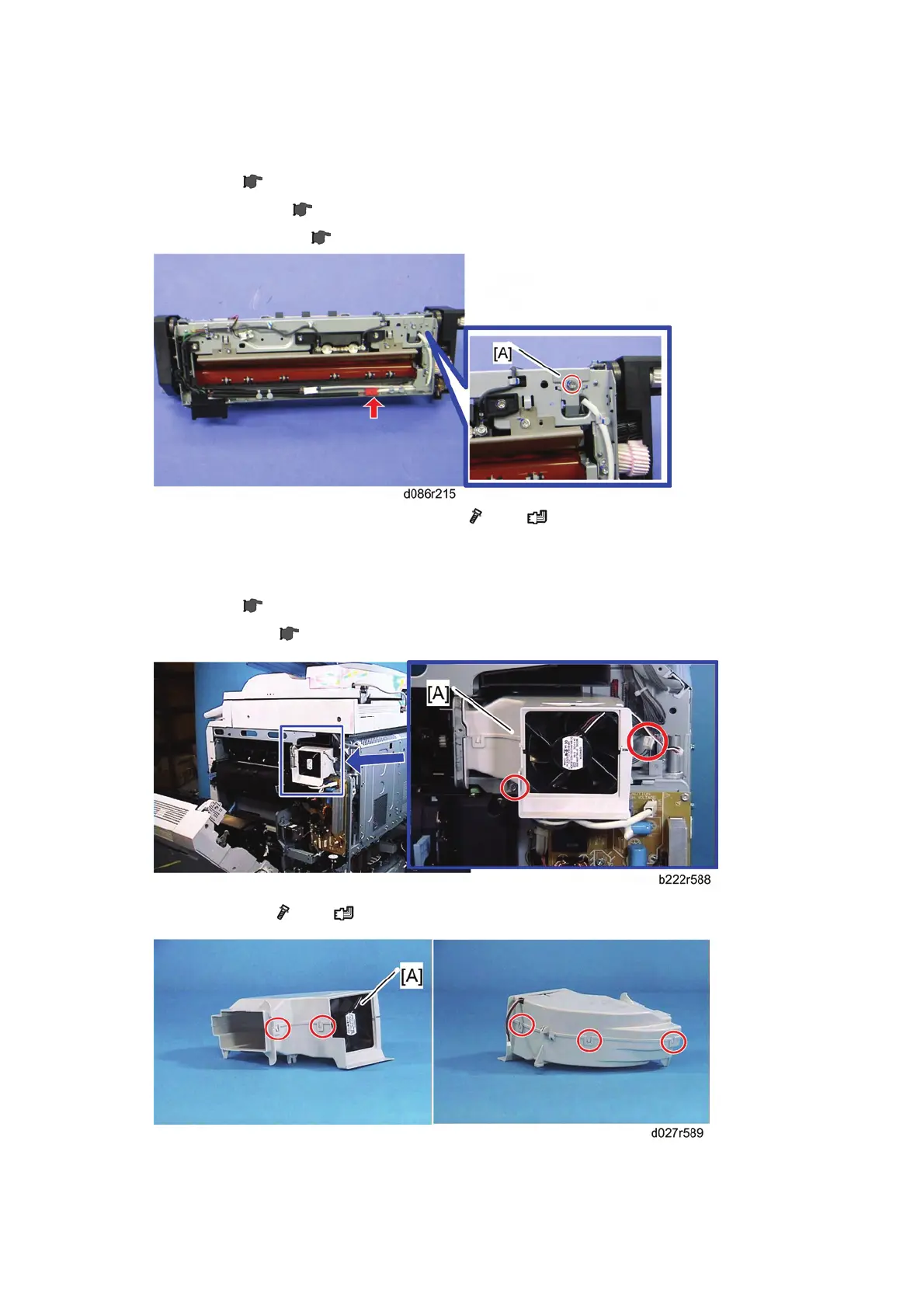

Pressure Roller Thermistor: End
1. Fusing unit ( p.4-99)
2. Fusing right cover (
p.4-103 "Heating Roller and Heating Roller Bearing")
3. Fusing bottom cover (
p.4-117 "Heating Roller Thermistor")
4. Pressure roller thermistor: end bracket [A] (
x 1, x 1)
4.11.13 FUSING FAN
1. Rear cover ( p.4-19)
2. Right rear cover (
p.4-19)
3. Fusing duct [A] (
x 1, x 1)
4. Fusing fan [A] (hook x 5)
