Ricoh Aficio MP C3501

Scanner Unit
D086/D087 4-26 SM

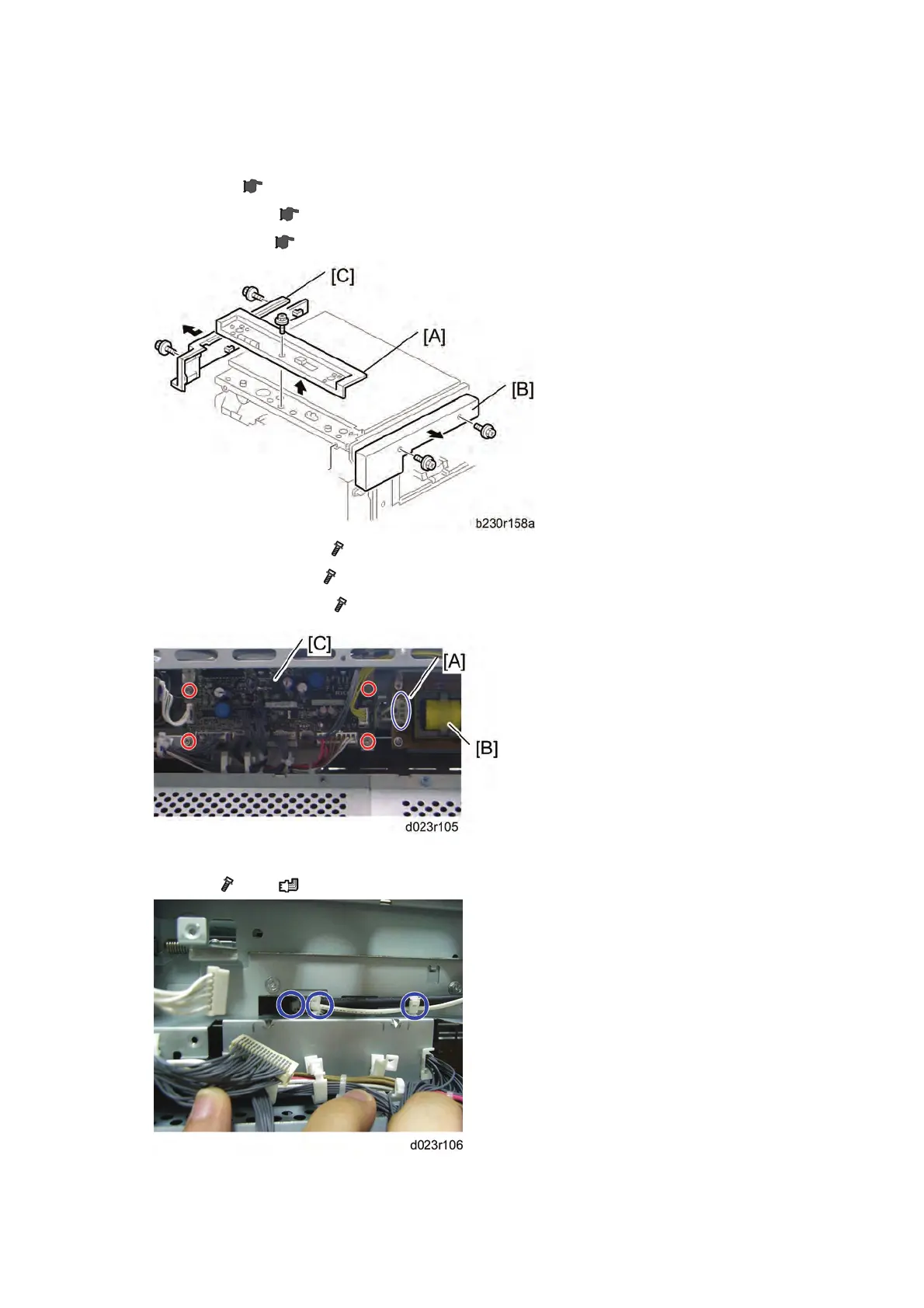

4.5.3 EXPOSURE LAMP
1. Rear cover ( p.4-19)
2. Operation panel (
p.4-20)
3. Exposure glass (
p.4-24)
4. Scanner rear cover [A] (
x 1)
5. Scanner left cover [B] (
x 2)
6. Scanner right cover [C] (
x 2)
7. Disconnect the connector [A] from the lamp stabilizer [B].
8. SIO [C] (
x 4, x All)
9. Release three clamps.
