Ricoh Aficio MP C3501

Electrical Component Layout
SM 7 D386
Bridge Unit
BU3030
D386

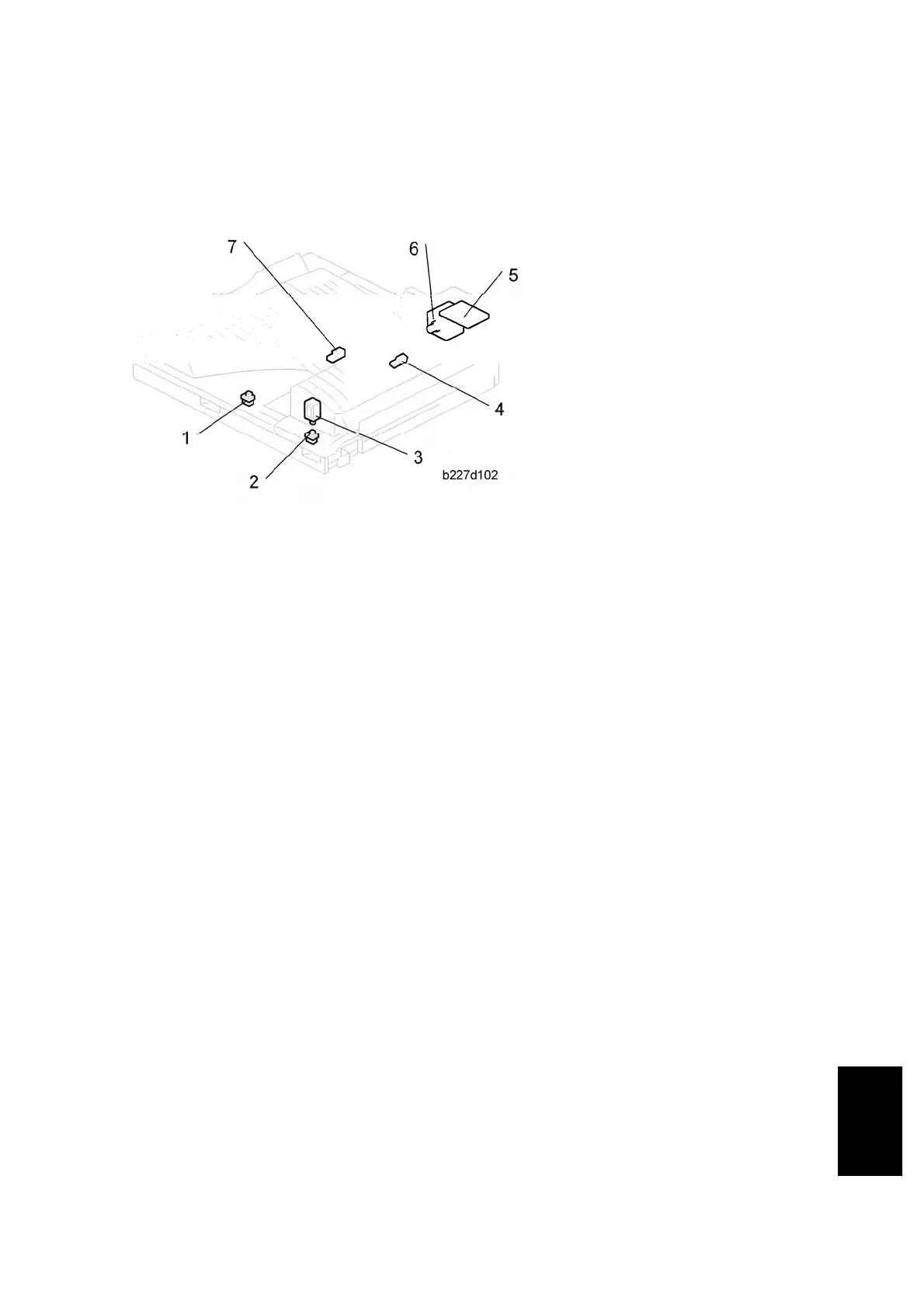

2.3 ELECTRICAL COMPONENT LAYOUT
1. Left Guide Switch
2. Right Guide Switch
3. Junction Gate Solenoid
4. Tray Exit Sensor
5. Bridge Unit Control Board
6. Bridge Unit Drive Motor
7. Relay Sensor
