Installation Requirements
D086/D087 2-2 SM
2.1.2 MACHINE LEVEL
Front to back: Within 5 mm (0.2")
Right to left: Within 5 mm (0.2")
2.1.3 MACHINE SPACE REQUIREMENTS
This machine, which uses high voltage power sources, can generate ozone gas.
High ozone density is harmful to human health. Therefore, the machine must be
installed in a well-ventilated room.

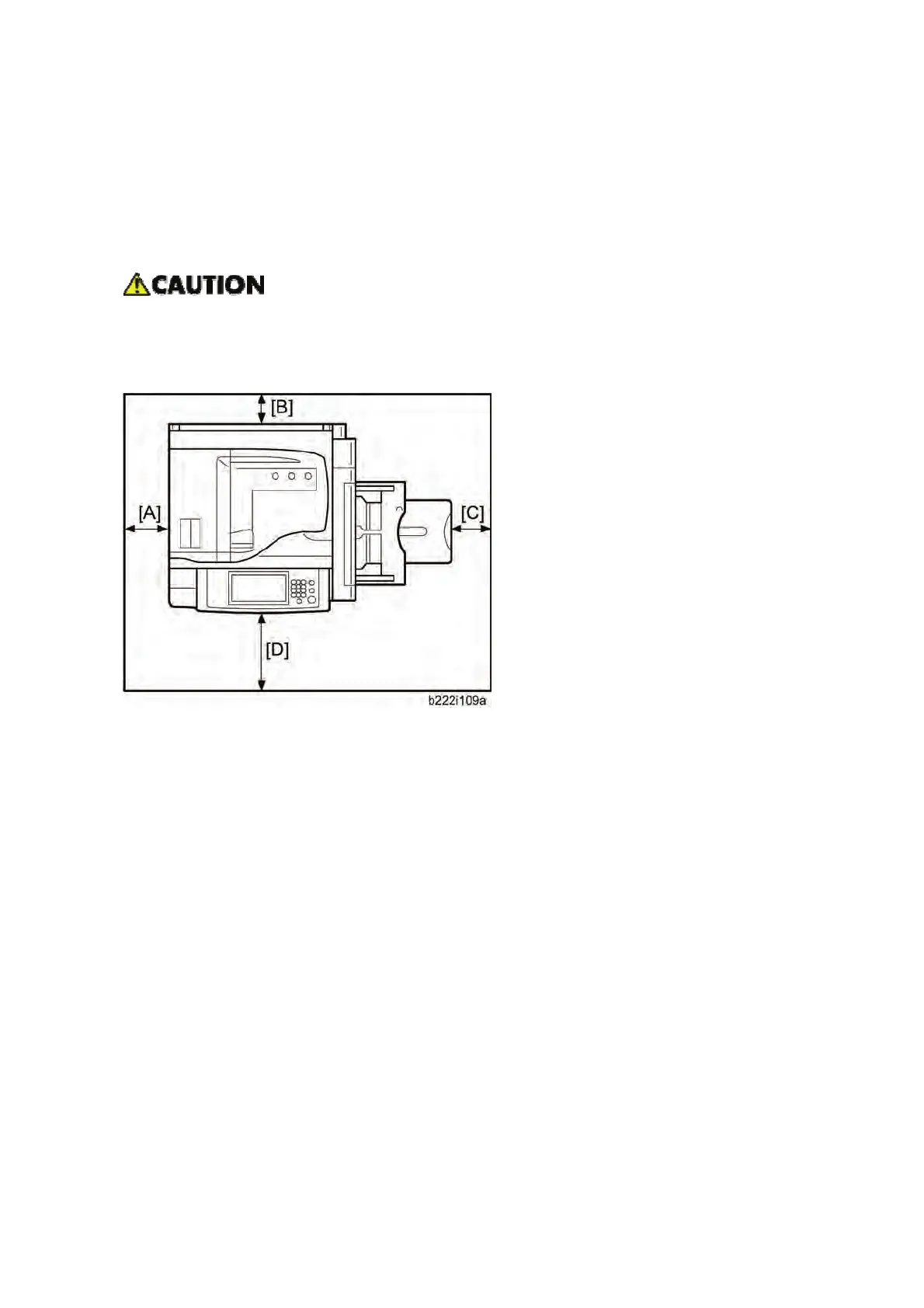

A: Over 100 mm (3.9")
B: Over 100 mm (3.9")
C: Over 100 mm (3.9")
D: Over 750 mm (29.5")
Put the machine near the power source with the clearance shown above.
