Ricoh Aficio MP C3501

Document Feed Components
SM 5 D541
ARDF DF3050
D541

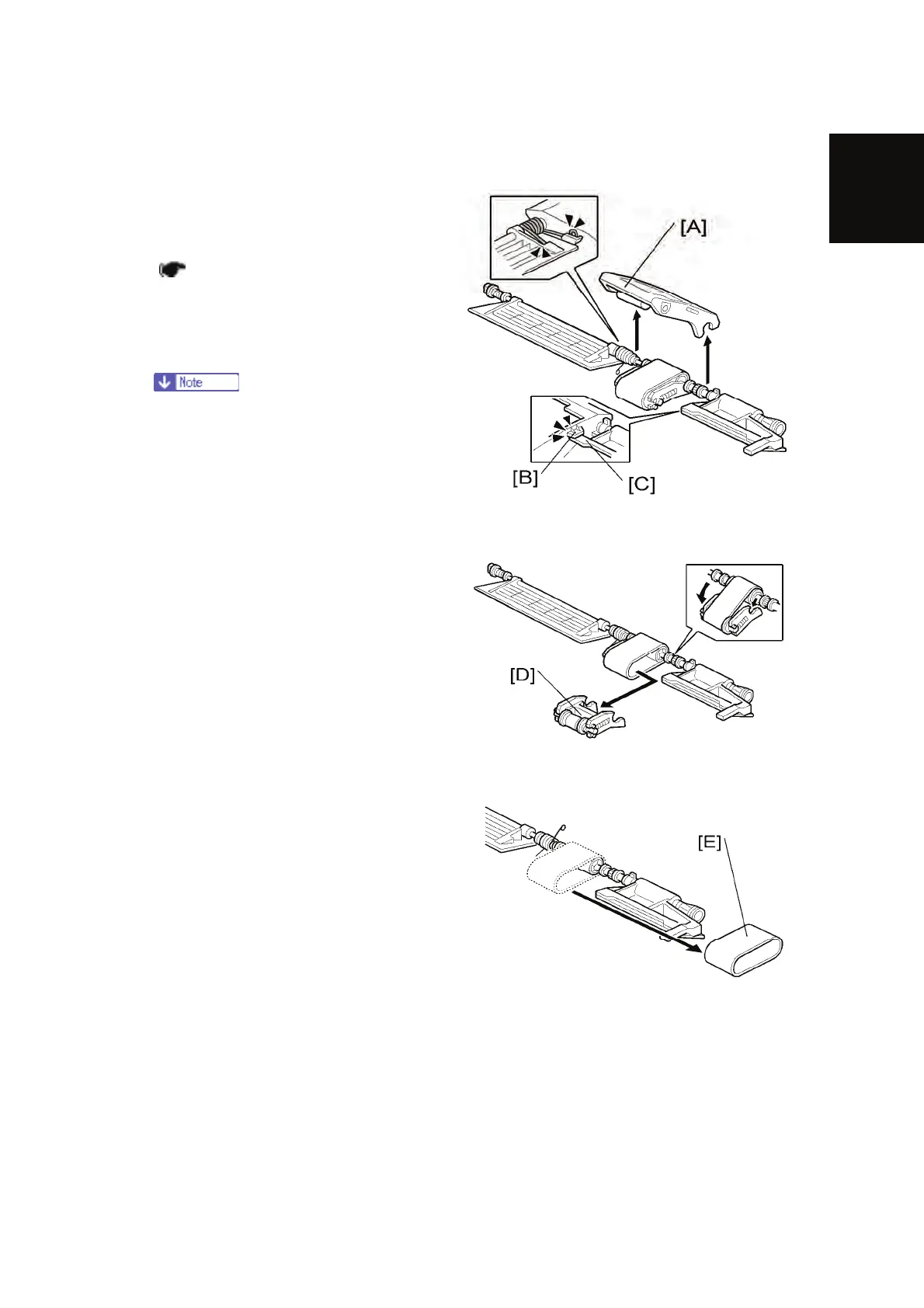

1.2.3 FEED BELT
1. Open the left cover.
2. Original feed unit
(
"Original Feed Unit")
3. Feed belt cover [A] (spring x 1)
 When reassembling the feed
belt cover, make sure that the
projection [B] of the feed belt
cover is on the guide plate
rear [C].
4. Belt tension unit [D]
5. Feed belt [E]
