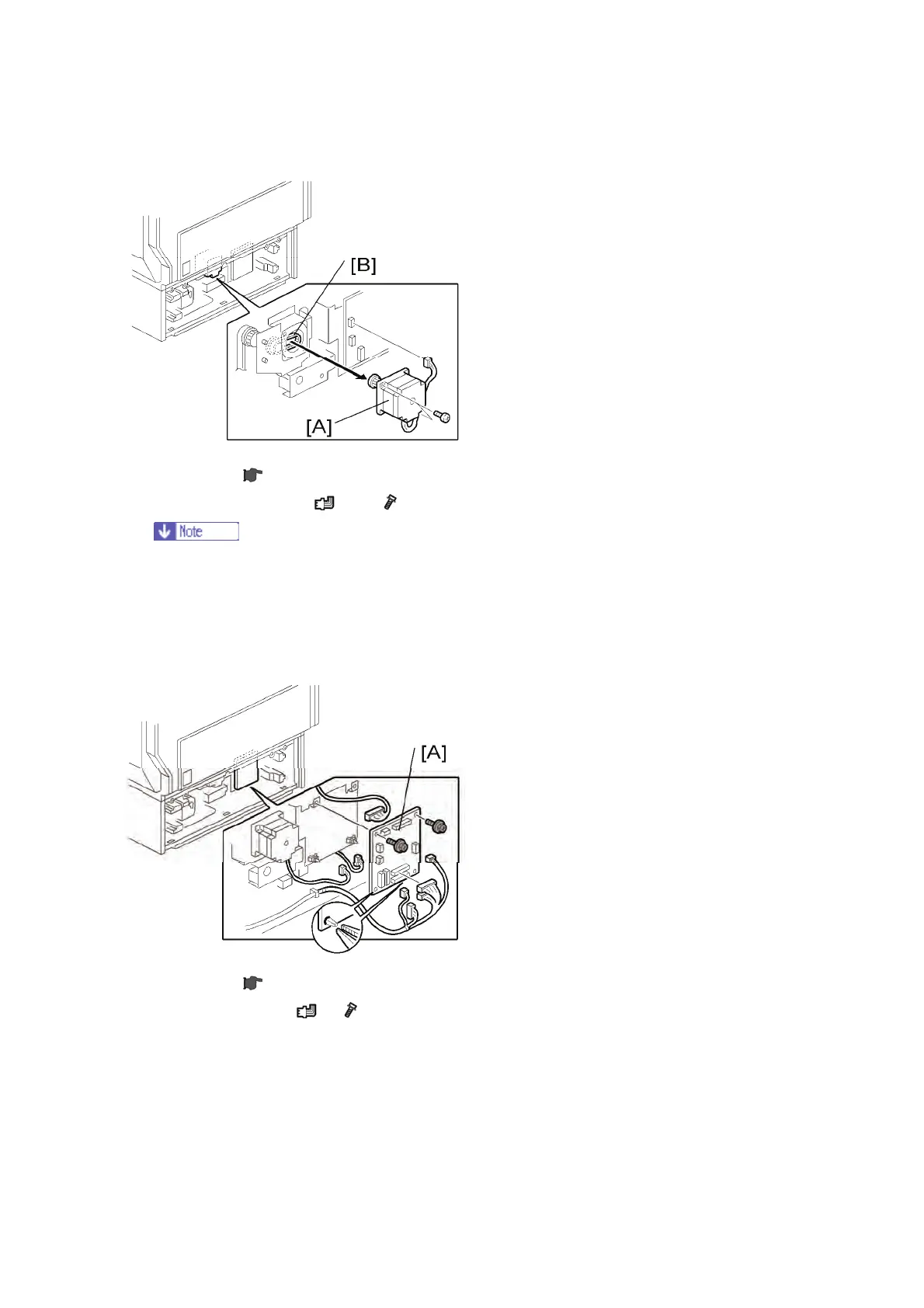

1.2.3 PAPER FEED MOTOR
1. Rear cover (
"Rear Cover")
2. Paper feed motor [A] (
x 1, x 2)
 When installing the paper feed motor, make sure that the gear of the paper feed
motor holds the timing belt [B].
1.2.4 MAIN BOARD
1. Rear cover (
"Rear Cover")
2. Main board [A] (All
s, x 2, snap pin x 2)
