Ricoh Aficio MP C3501 Service Manual

Drive Unit
D086/D087 4-86 SM
4.10.4 DRUM/DEVELOPMENT MOTORS FOR M, C, AND Y
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. Open the controller box (
p.4-153 "Controller Box").

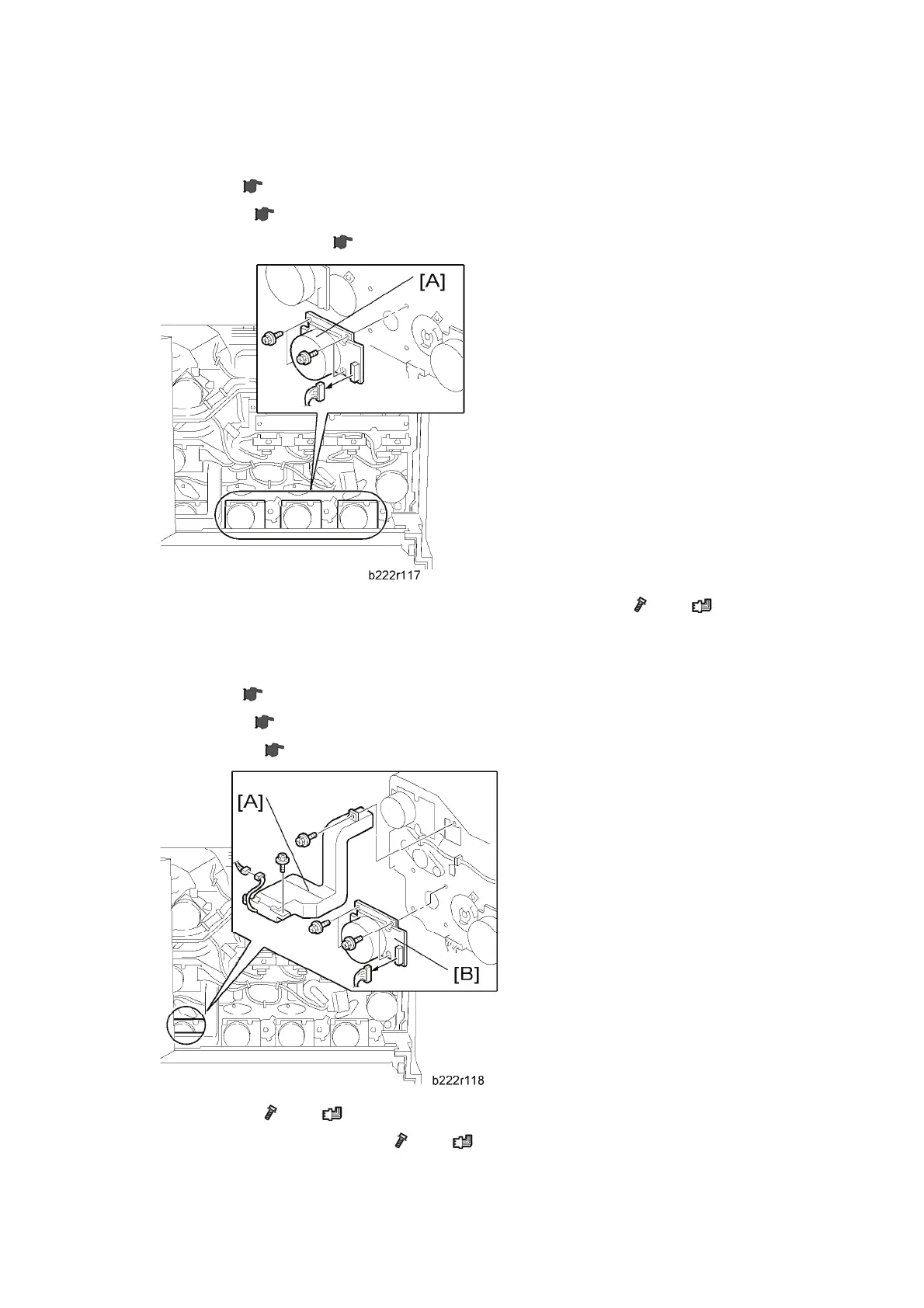

4. Drum/Development motors (three motors, one each for MCY) [A] (
x 4, x 1 each)
4.10.5 DRUM/DEVELOPMENT MOTOR-K
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. Controller box (
p.4-153 "Controller Box")
4. Third duct [A] (
x 2, x 1)
5. Drum/Development motor-K [B] (
x 4, x 1)
