Controller Options
D086/D087 2-110 SM
2.26.6 IEEE 1284 INTERFACE BOARD TYPE A
Installation Procedure
Unplug the main machine power cord before you do the following procedure.
You can only install one of the following network interfaces at a time: (IEEE 802.11 a/g,
(Wireless LAN), IEEE1284, Bluetooth).

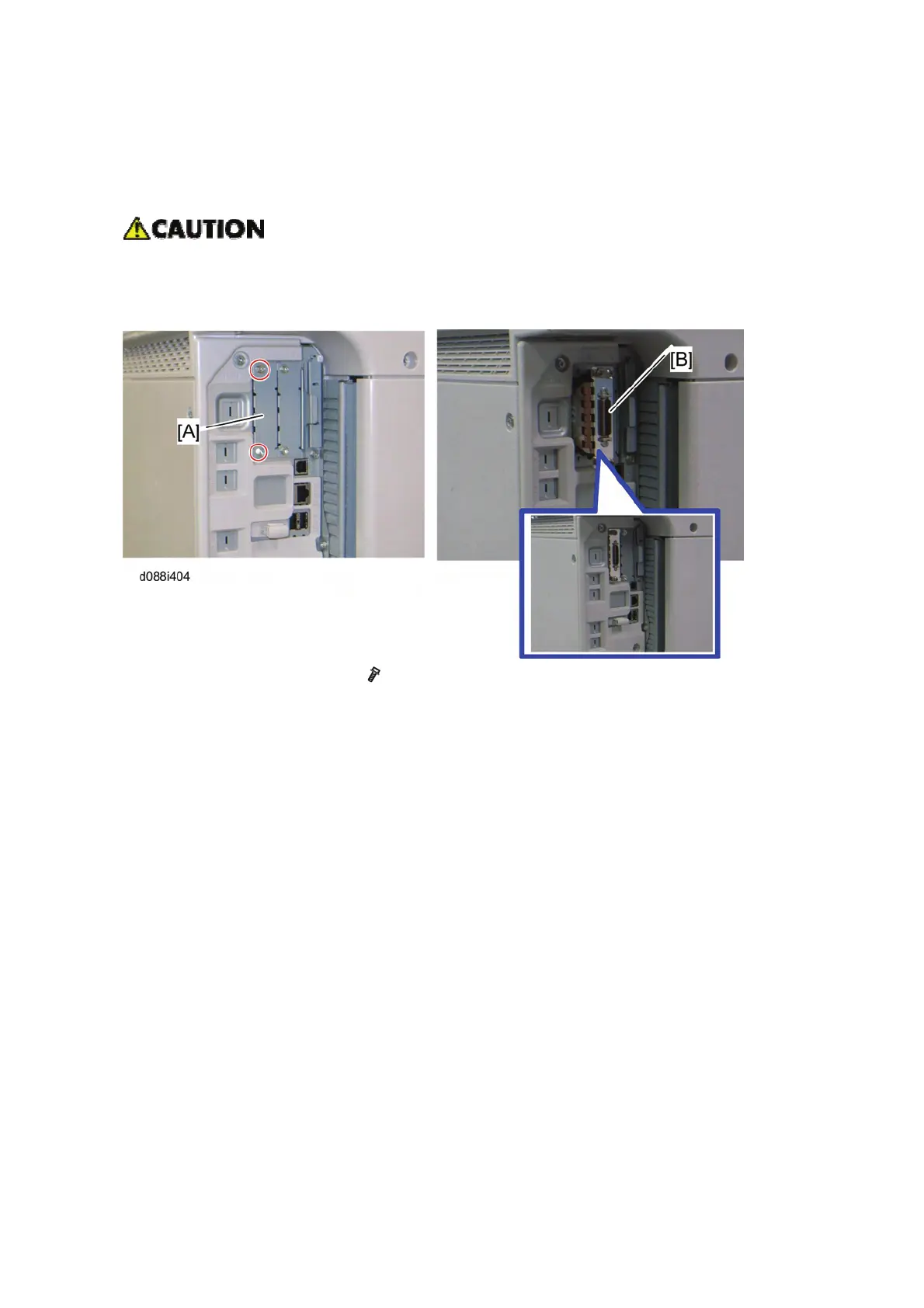

1. Remove the slot A cover [A] (
x 2).
2. Install the interface board [B] (Knob-screw x 2) into the slot A.
3. Make sure that the machine can recognize the option (see ‘Check All Connections’ at the
end of this section).
