Ricoh Aficio MP C3501 Service Manual

G3 Interface Unit (D393)
SM 15 D545
Fax option
Type C5501
D545
1.3.2 INSTALLATION PROCEDURE
 Before installing this optional unit:
 Print out all data in the printer buffer.
 Turn off the main switch and disconnect the power cord and the network cable.
You can add two more SG3 boards to this model. Follow the procedures for adding the single
SG3 board installation or double SG3 boards installation as a customer needs.
For Installing the single G3 Board

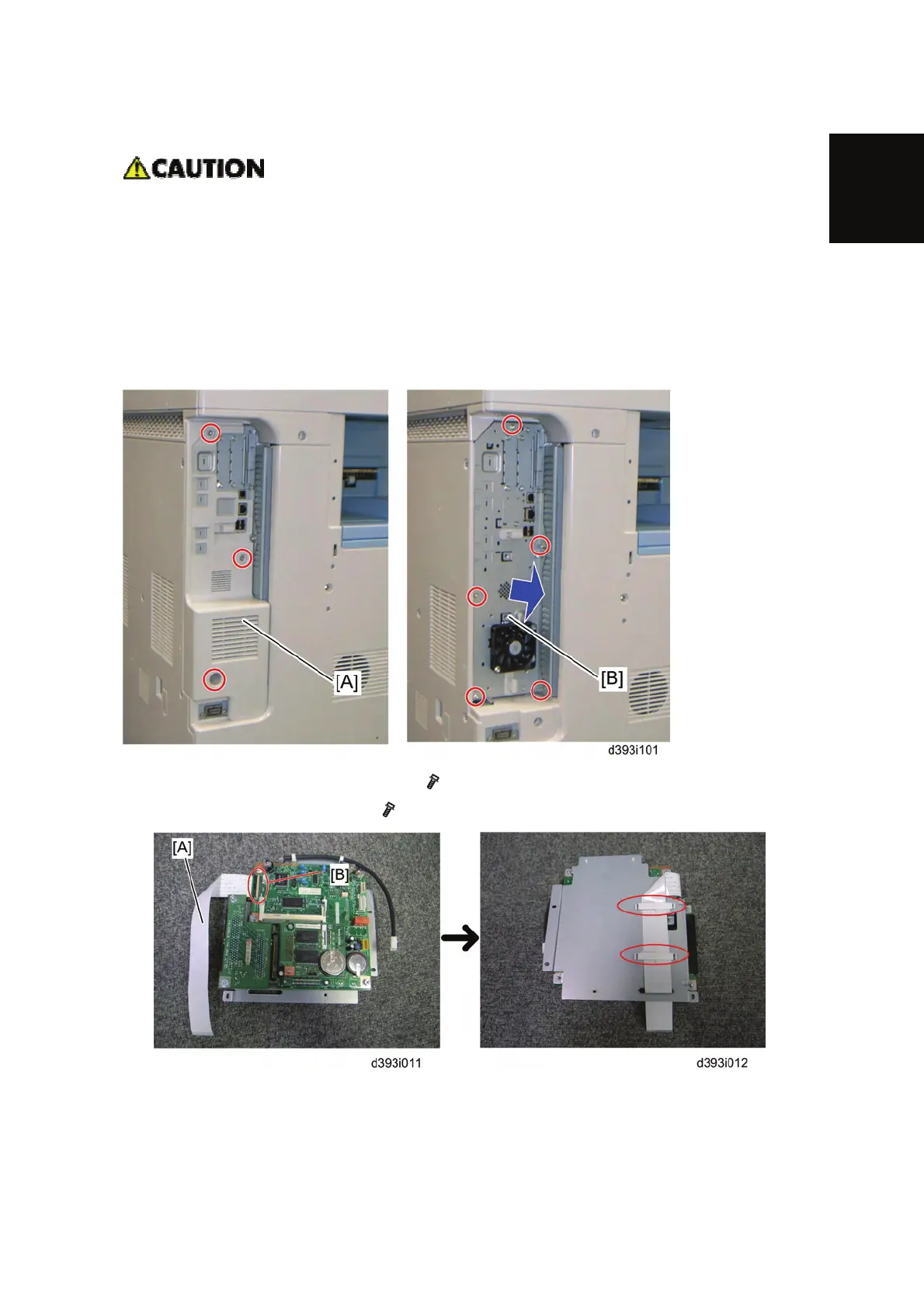

1. Remove the controller box cover [A] (
x 3).
2. Remove the controller box [B] (
x 5).
3. Attach one end (short length) of the flat cable [A] to the connector [B] of the FCU board.
4. Hold the flat cable with two clamps and pass the other end of the flat cable through the
cutout as shown above.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
