Ricoh Aficio MP C3501 Service Manual

Scanner Unit
SM 4-29 D086/D087
Replacement
and
Adjustment
4.5.5 SENSOR BOARD UNIT (SBU)
1. Exposure glass (
p.4-24)
2. Original length sensor bracket (
p.4-25 "Original Length Sensors")

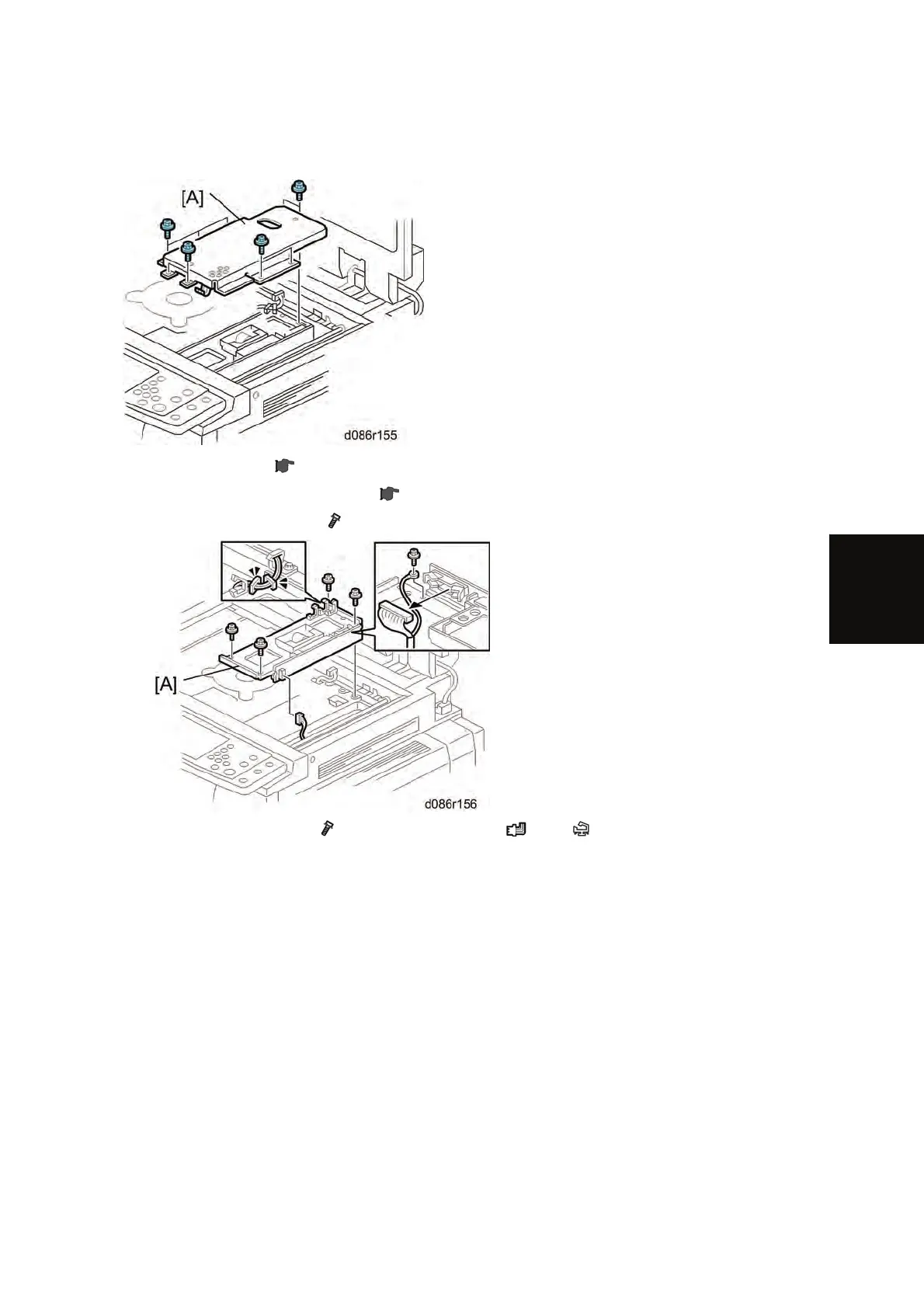

3. SBU cover bracket [A] (
x 9)
4. Sensor board unit [A] (
x 4, Grand screw x 1, x 2, x 2)
When reassembling
Adjust the following SP modes after you replace the sensor board unit:
 SP4–008 (Sub Scan Mag): See "Image Adjustment: Scanning".
 SP4–010 (Sub Mag Reg.): See "Image Adjustment: Scanning".
 SP4–011 (Main Scan Reg): See "Image Adjustment: Scanning".
 SP4–688 (DF: Density Adjustment): Use this to adjust the density level if the ID of
outputs made in the DF and Platen mode is different.
