Ricoh Aficio MP C3501

Drive Unit
SM 4-85 D086/D087
Replacement
and
Adjustment

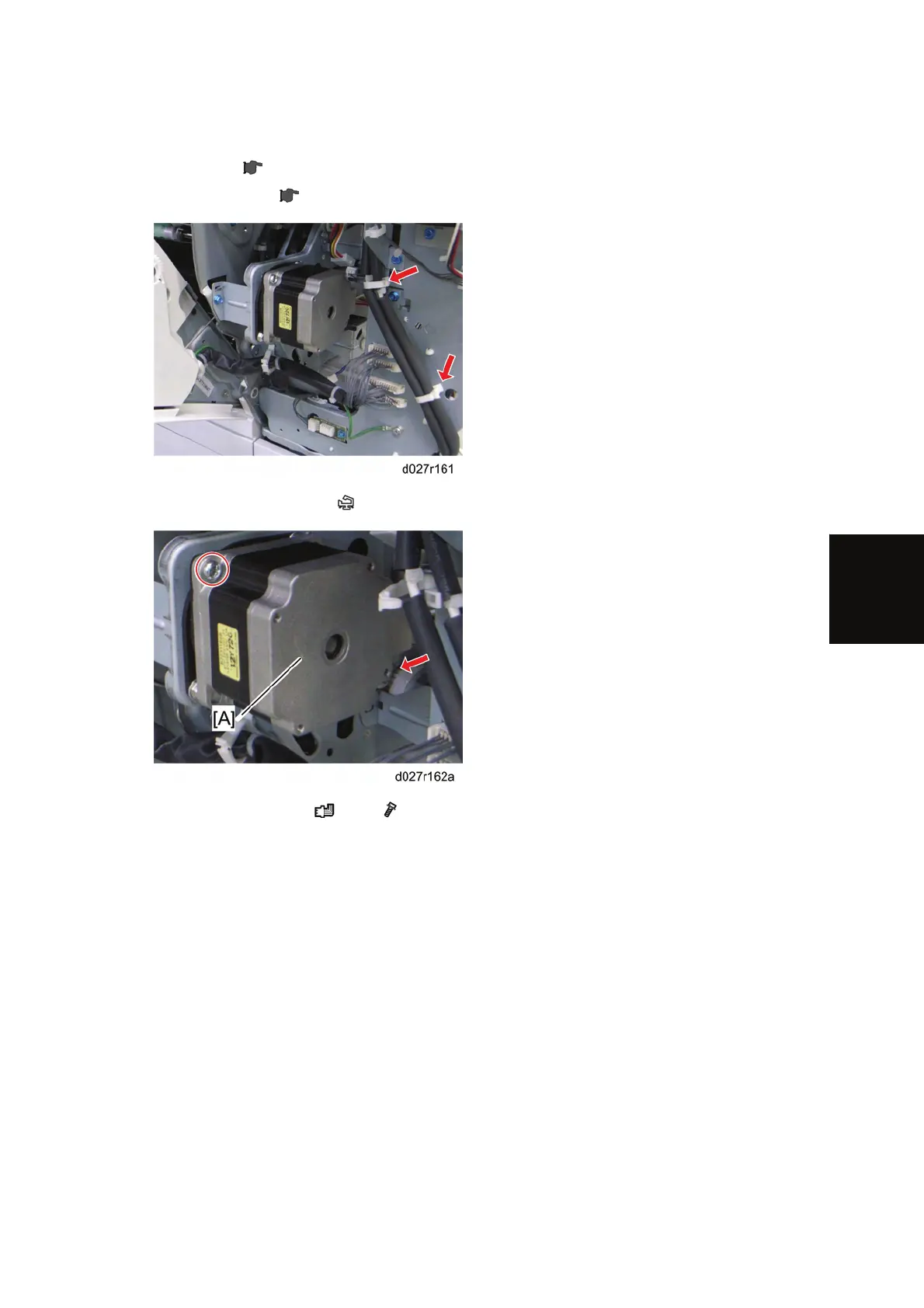

4.10.3 PAPER FEED MOTOR
1. Rear cover ( p.4-19)
2. Right rear cover (
p.4-19)
3. Release the two clamps (
x 2)
4. Paper feed motor [A] (
x 1, x 2, timing belt)
