Ricoh Aficio MP C3501

Electrical Components
SM 9 D539
LCIT RT3010
D539

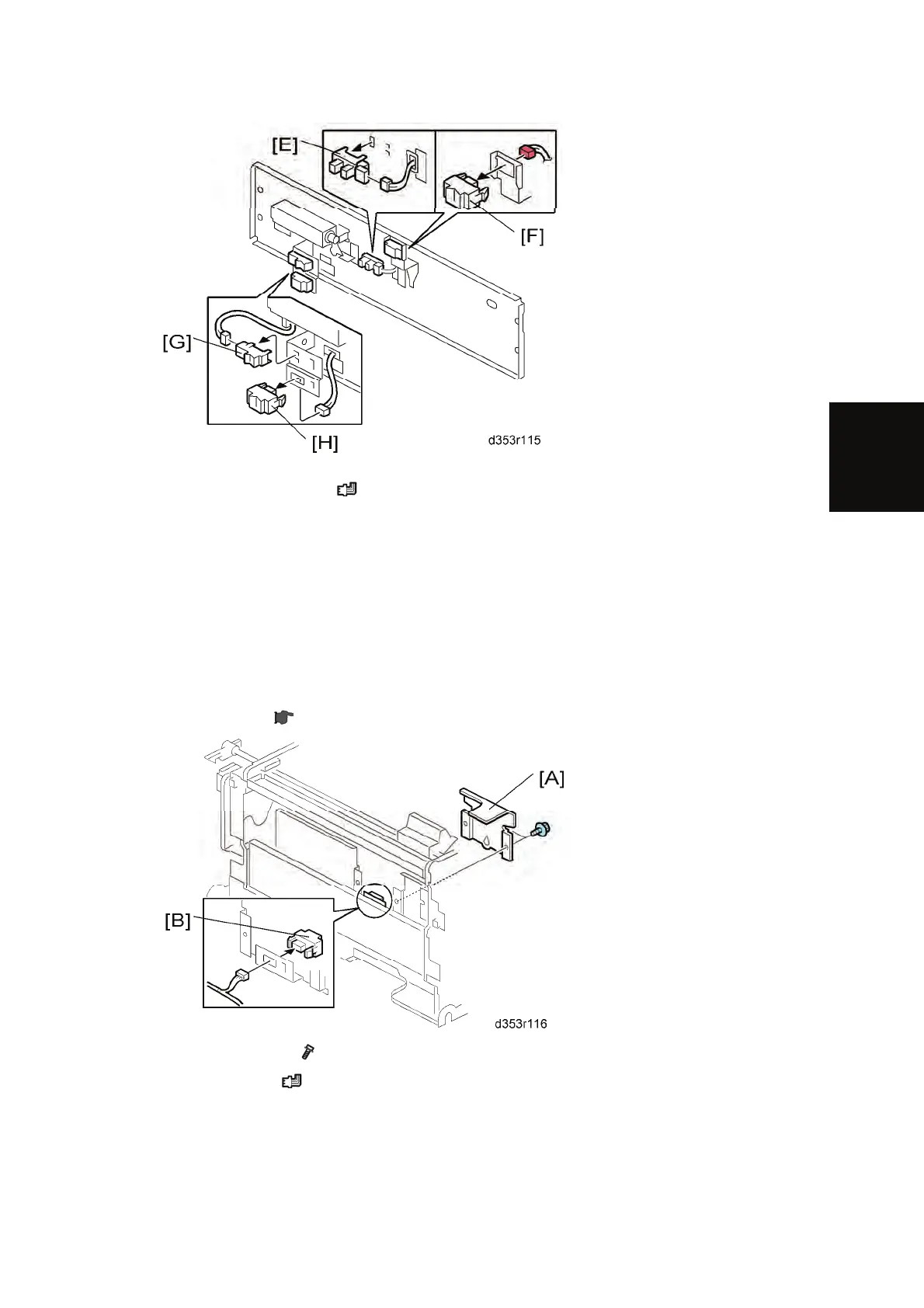

7. Sensors [E], [F], [G], [H] (
x 1, hooks each)
[E]: Tray lift sensor
[F]: Relay sensor
[G]: Paper feed sensor
[H]: Paper end sensor
1.4.5 STACK SENSOR
1. Open the right door
2. Paper feed unit (
p.8)
3. Sensor bracket [A] (
x 2)
4. Stack sensor [B] (
x 1)
