Ricoh Aficio MP C3501

Main Body
B793 6 SM
1.2.3 PROOF TRAY EXIT / FULL SENSOR
1. Remove the front cover, rear cover and proof tray.
2. Open the upper cover.

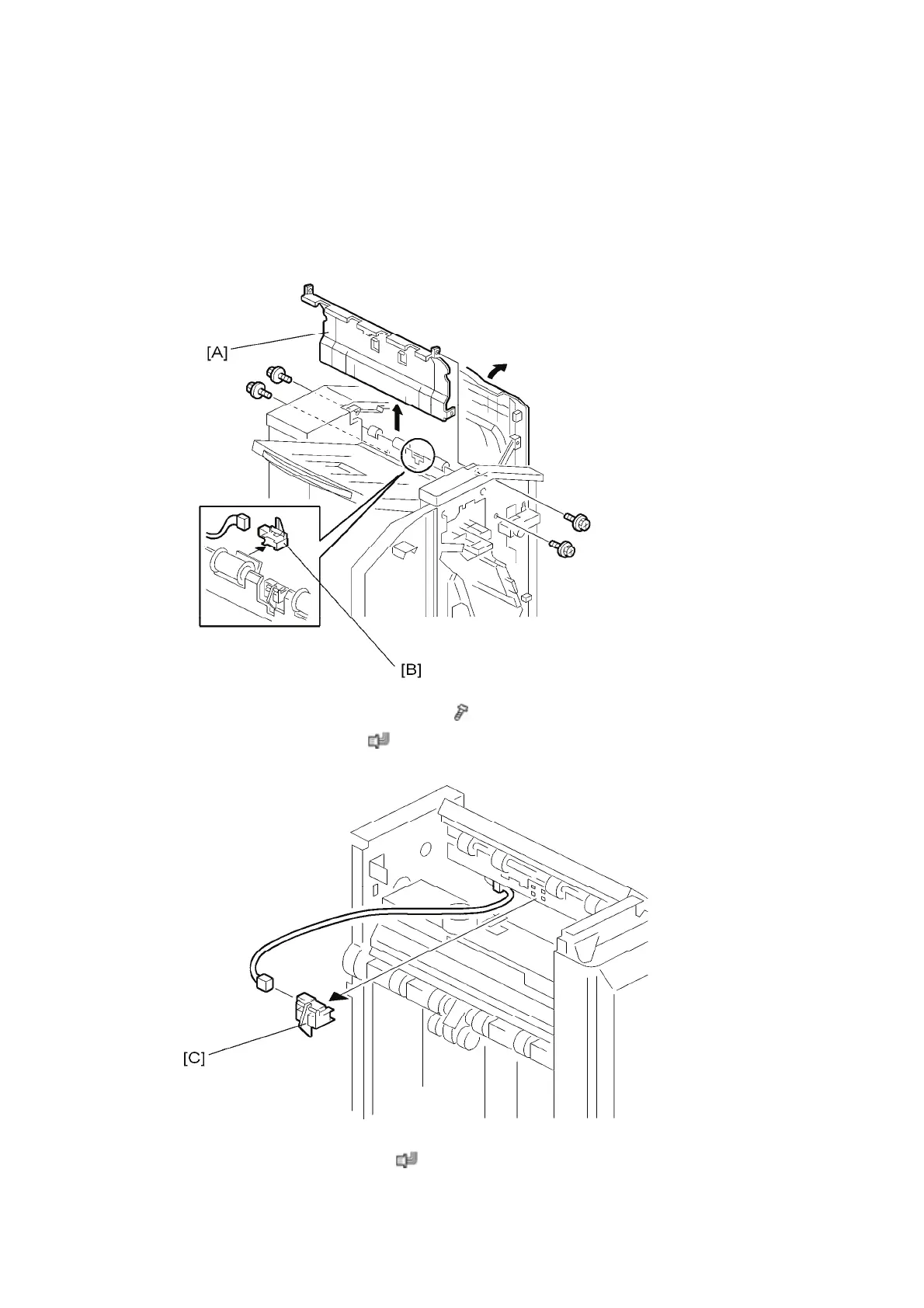

3. Remove the vertical transport guide [A] ( x 4).
4. Remove the exit sensor [B] (
x 1).
5. Remove the tray full sensor [C] ( x 1).
