Ricoh Aficio MP C3501

Exterior Covers
SM 4-21 D086/D087
Replacement
and
Adjustment

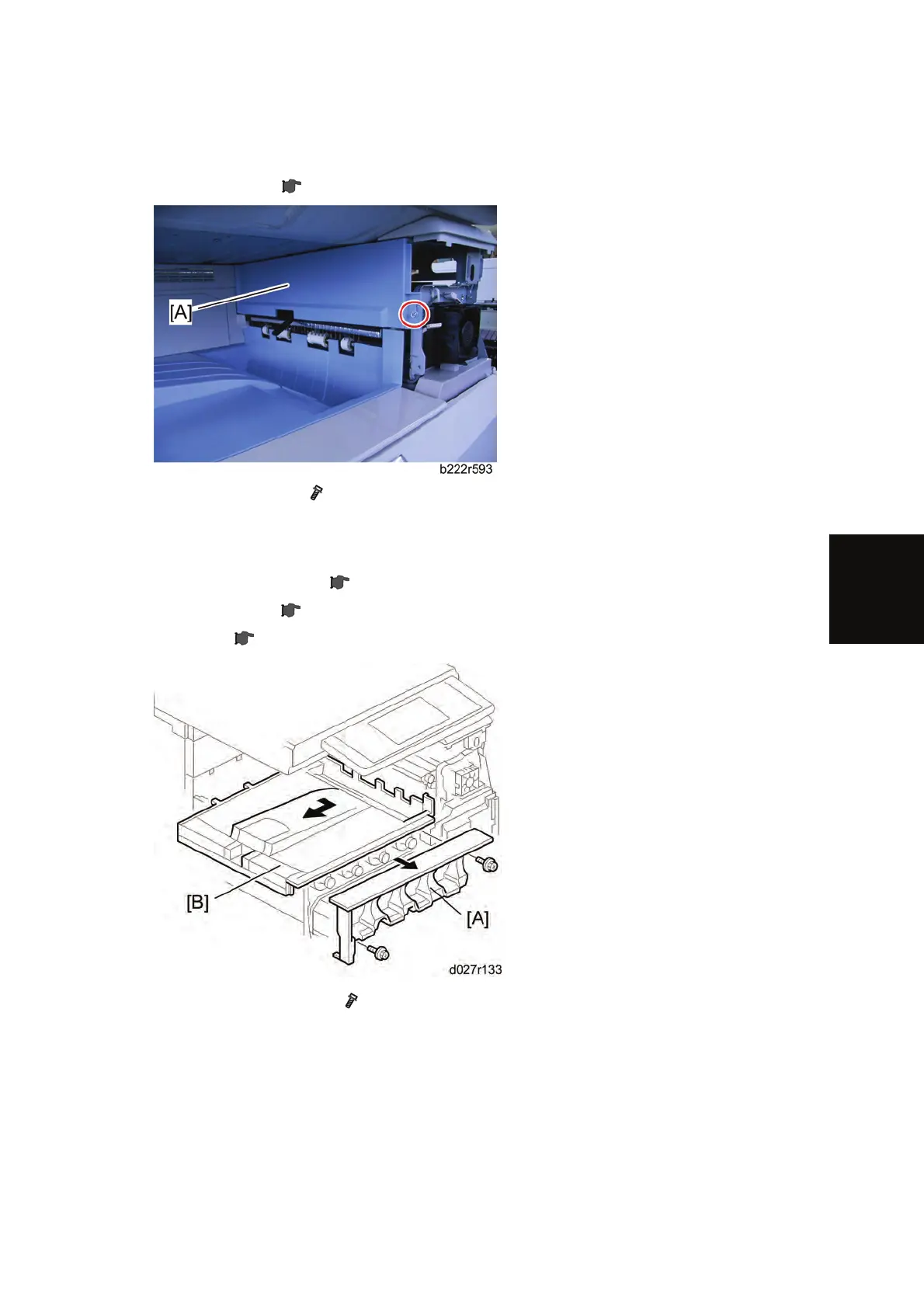

4.4.7 PAPER EXIT COVER
1. Front right cover ( p.4-20 "Operation Panel")
2. Paper exit cover [A] (
x 1)
4.4.8 INNER TRAY
1. Image transfer belt unit ( p.4-63)
2. Paper exit cover (
p.4-21)
3. Left cover (
p.4-18)
4. Toner cartridge cover [A] ( x 2)
5. Inner tray [B]
