Ricoh Aficio MP C3501 Service Manual

Product Overview
D086/D087 1-4 SM

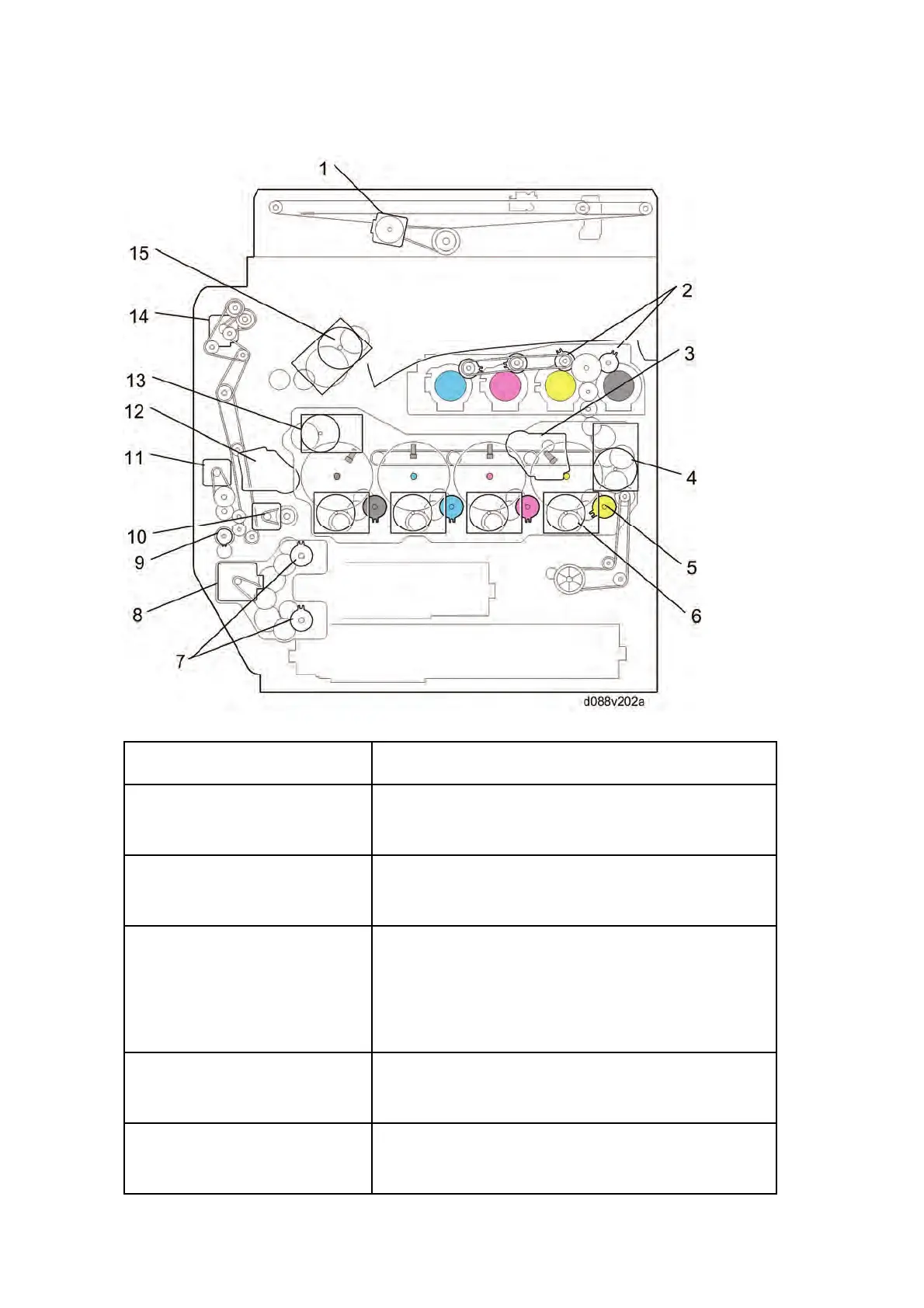

1.2.3 DRIVE LAYOUT
1. Scanner motor: Drives the scanner unit.
2. Toner supply clutch-K and
-CMY:
Turns on/off the drive power to the toner supply unit (K
and -CMY).
3.ITB (Image Transfer Belt)
contact motor:
Moves the ITB into contact and away from the color
PCUs.
4. Toner transport motor:
Drives the toner attraction pumps and the toner
collection coils from the PCUs, from the transfer belt
unit, and inside the toner collection bottle. Also rotates
the toner bottles.
5. Development clutch (K, Y, M,
C):
Turns on/off the drive power to the development unit
(K, Y, M, C).
6. Drum/Development drive
motor (K, Y, M, C)
Drives the color drum unit and development unit (K, Y,
M, C).

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
