Image Transfer
SM 4-67 D086/D087
Replacement
and
Adjustment
4.8.3 IMAGE TRANSFER BELT
1. Image transfer belt cleaning unit ( p.4-64)
2. Image transfer belt unit (
p.4-63)

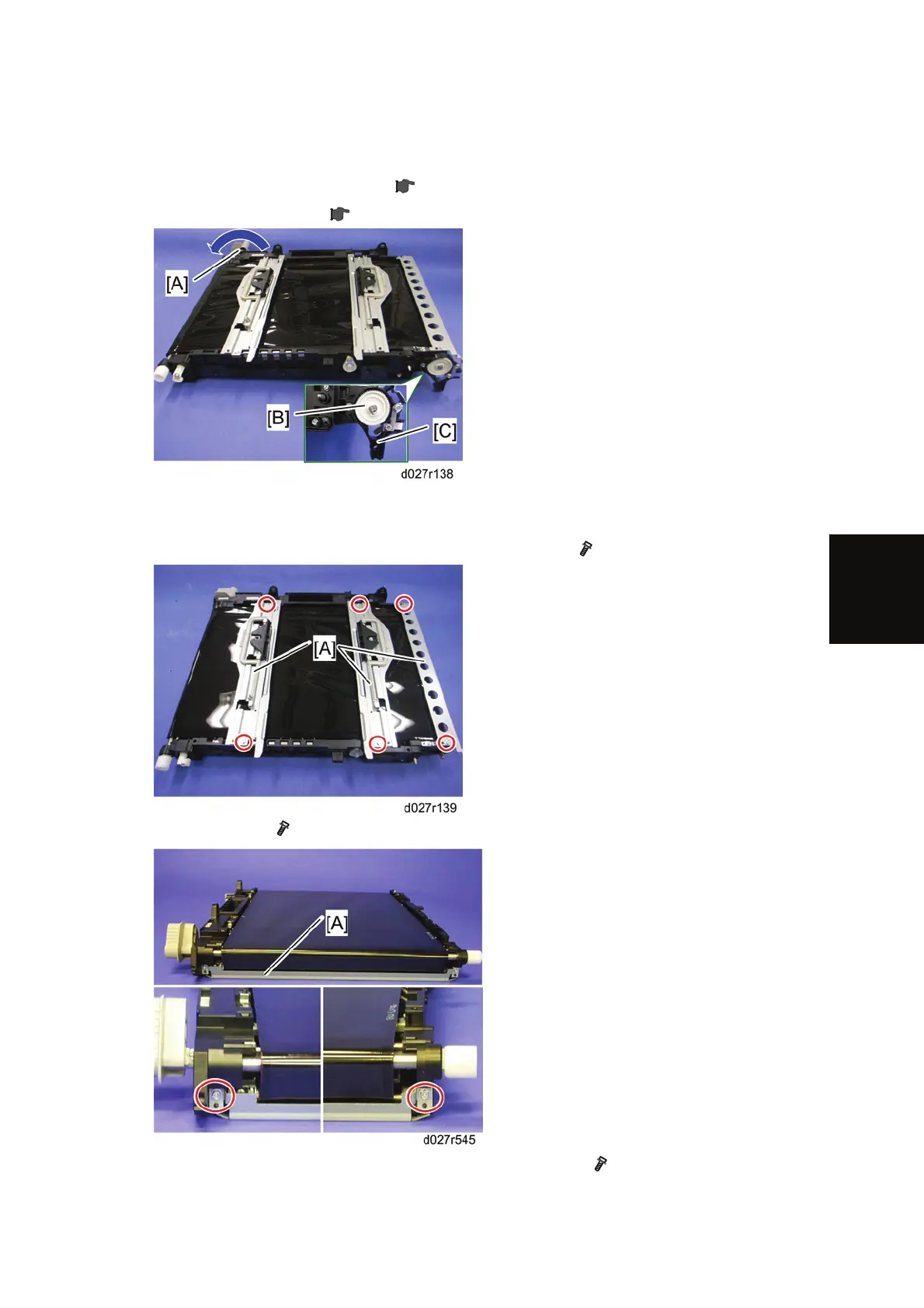

3. Turn the image transfer unit contact lever [A] counterclockwise (as seen from the rear).
4. Gear [B] (hook x 1)
5. Turn the gear cover [C] clockwise (as seen from the rear) ( x 1).
6. Three stays [A] (
x 6)
7. Guide plate [A] (as seen from the right side of the machine) (
x 2)
