Ricoh Aficio MP C3501

Image Transfer
D086/D087 4-68 SM

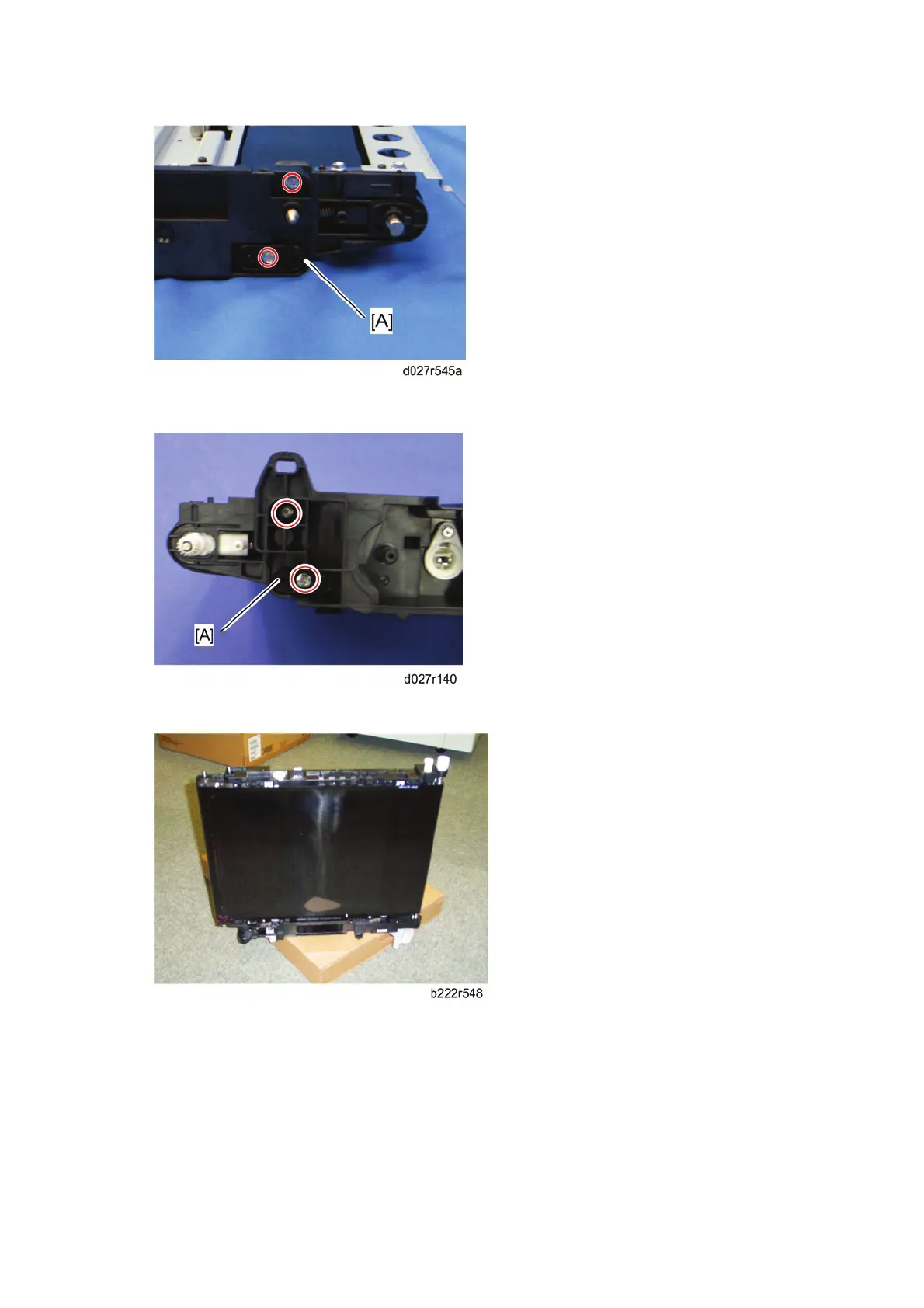

8. Remove the two screws and then the rear holder bracket [A] (as seen from the rear).
9. Remove the two screws and then the front holder bracket [A] (as seen from the front).
10. Put the front side of the image transfer belt unit on a corner of the table or a box as
shown.
