Electrical Components
D539 8 SM
1.4.4 PAPER FEED, PAPER END, TRAY LIFT AND RELAY
SENSORS

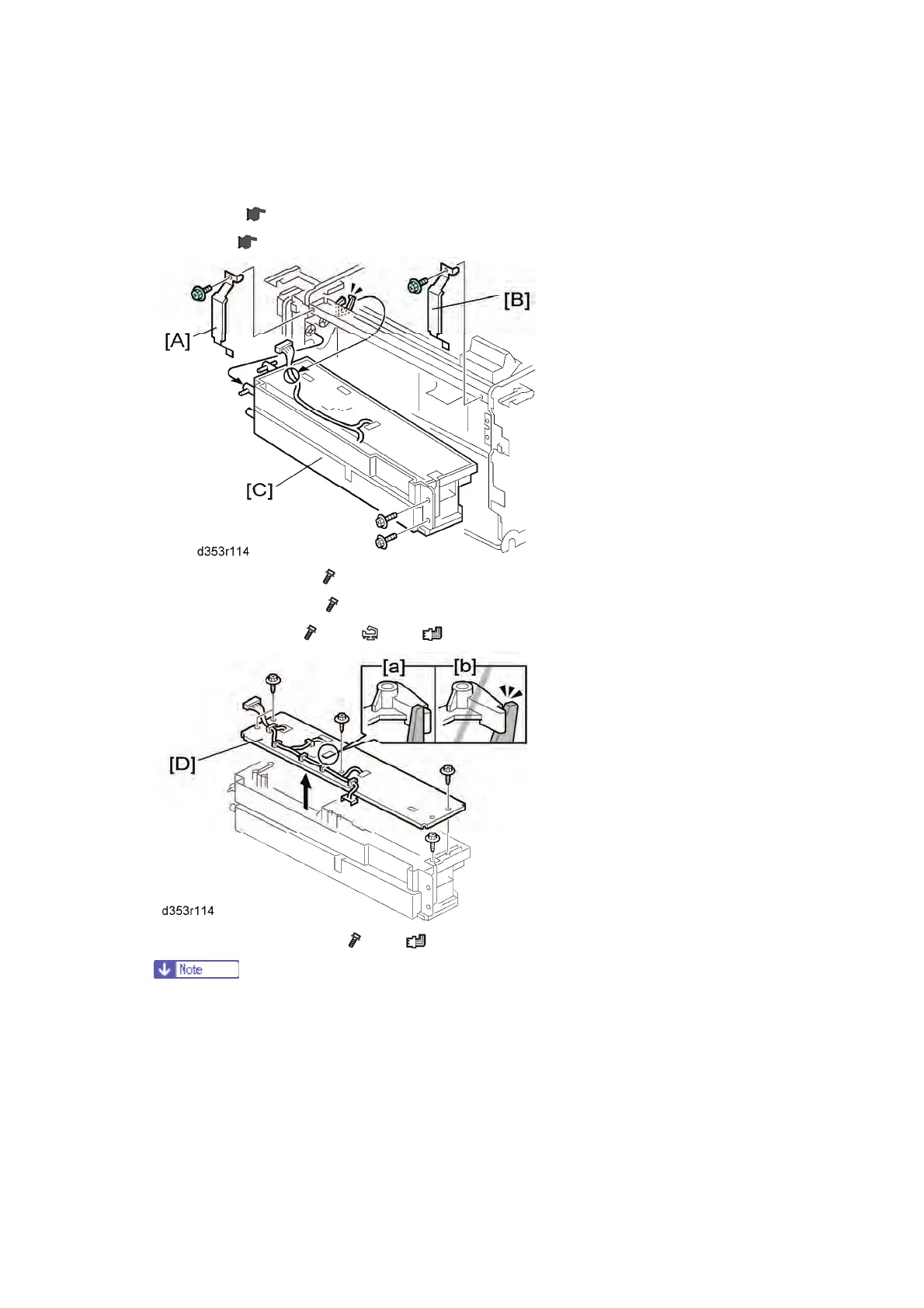

1. Front cover ( p.2)
2. Top Cover (
p.2)
3. Rear ground plate [A] (
x 1)
4. Front ground plate [B] (
x 1)
5. Paper feed unit [C] (
x 2, x 1, x 1)
6. Paper feed unit cover [D] (
x 5, x 1)
Before you re-install the paper feed unit cover, make sure that the pick-up
solenoid holds the pick-up roller lever ([a]: correct, [b]: incorrect) and the pick-up
roller works properly.
To Next Page
