Drive Unit
D086/D087 4-98 SM

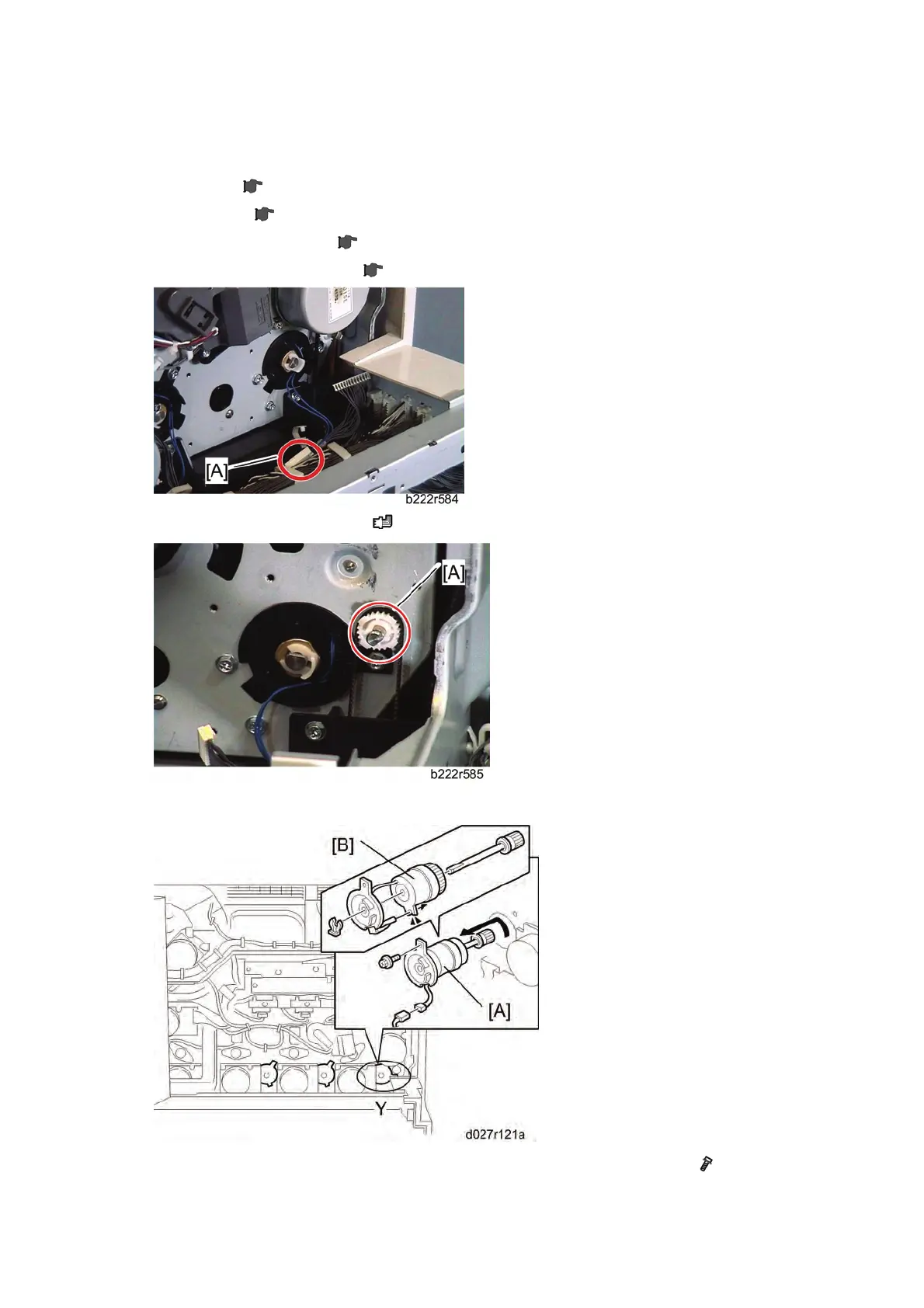

4.10.16 DEVELOPMENT CLUTCH-Y
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. Open the controller box. (
p.4-153 "Controller Box").
4. Drum/development motor-Y (
p.4-84)
5. Disconnect the connector [A] (
x 1).
6. Remove the pulley and bushing [A].
7. Turn the development clutch unit [A] counter-clockwise and then pull it out (
x 1).
To Next Page
