Ricoh Aficio MP C3501 Service Manual

Scanner Unit
D086/D087 4-40 SM

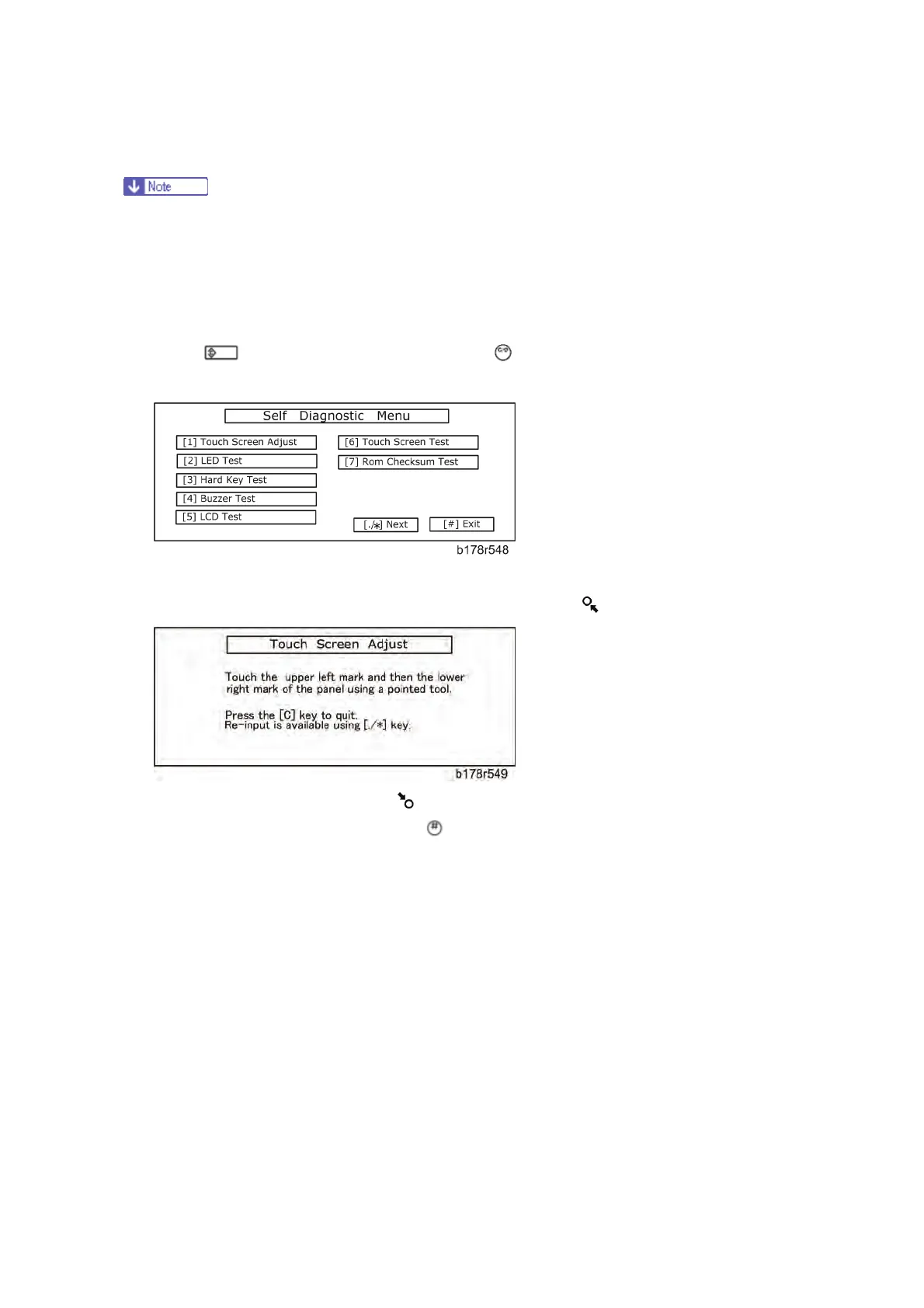

4.5.12 TOUCH PANEL POSITION ADJUSTMENT
 It is necessary to calibrate touch panel at the following times:
 When you replace the operation panel.
 When you replace the controller board.
 When the touch panel detection function does not operate correctly
Do not use items [2] to [9] on the Self-Diagnostic Menu. These items are for design use only.
1. Press
, press "1", "9", "9", "3", then press 5 times to open the Self-Diagnostics
menu.
2. On the touch screen press “Touch Screen Adjust” (or press "1").
3. Use a pointed (not sharp) tool to press the upper left mark "
".
4. Press the lower right mark when " " shows.
5. Press [#] OK on the screen (or press
) when you are finished.
6. Touch [#] Exit on the screen to close the Self-Diagnostic menu. Save the calibration
settings.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
