Ricoh Aficio MP C3501 Service Manual

Laser Optics
SM 4-49 D086/D087
Replacement
and
Adjustment
4.6.4 POLYGON MIRROR MOTOR AND DRIVE BOARD

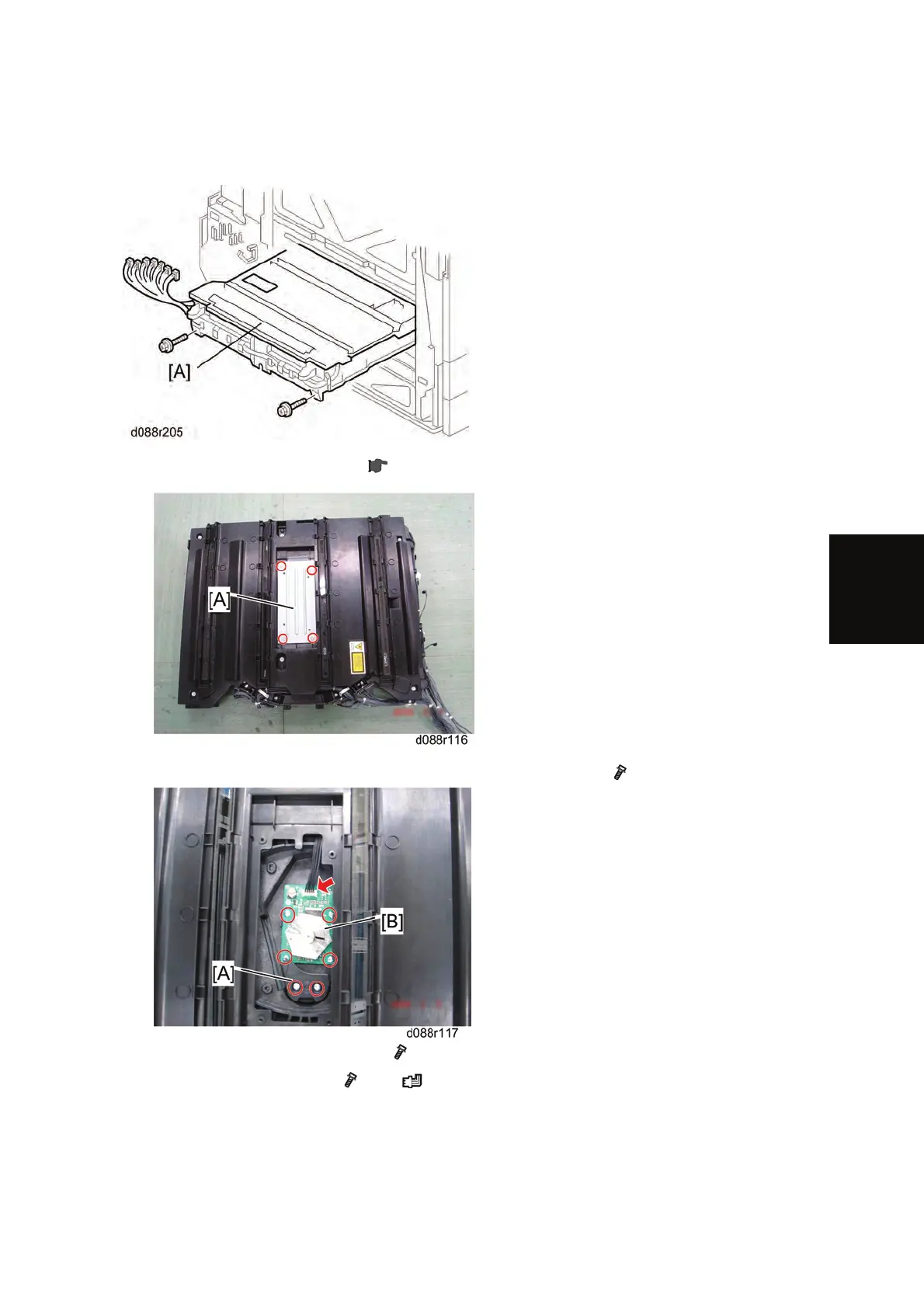

1. Laser optics housing unit [A] (
p.4-41)
2. Polygon mirror motor cover [A] of the laser optics housing unit (
x 4)
3. Polygon mirror motor holder [A] (
x 2)
4. Polygon mirror motor [B] (
x 4, x 1)
After installing the polygon mirror motor:
 1) Do the "Forced Line Position Adj. Mode c" (SP2-111-3).
 2) Then do the "Forced Line Position Adj. Mode a" (SP2-111-1).
