Ricoh Aficio MP C3501 Service Manual

Fax Unit Options
SM 11 D545
Fax option
Type C5501
D545

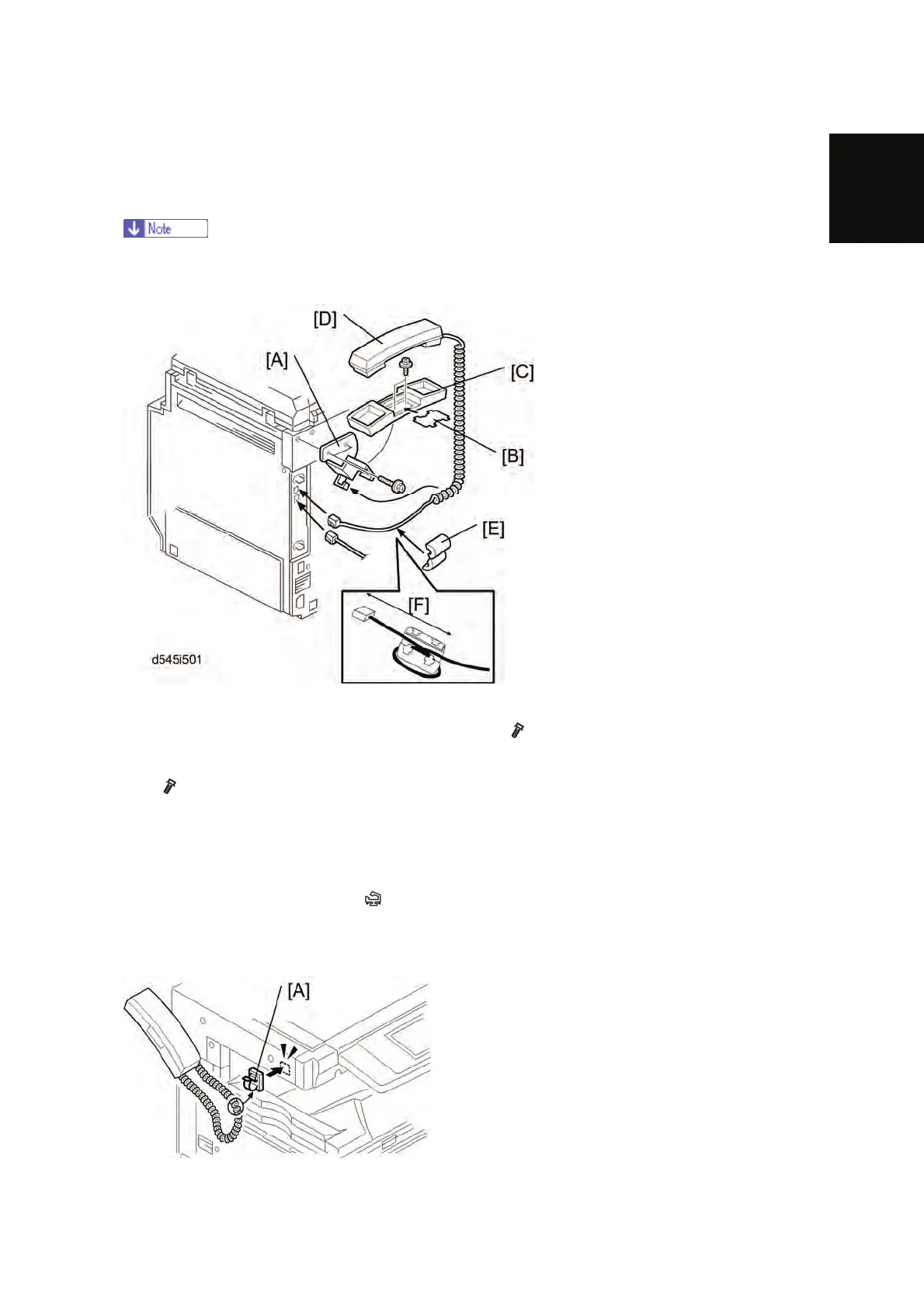

1.2.2 HANDSET (B433)
For D086/D087
 The optional handset is available for the U.S. version only.
For the copier without any finisher
1. Make two holes in the scanner left cover.
2. Attach the bracket [A] enclosed with the fax unit (
x 2: M3 x 12) as shown.
3. Remove the label [B] from the handset cradle [C]. Attach the cradle [C] to the bracket [A]
(
x 2: M3 x 8), and then replace the label [B].
4. Install the handset [D] on the cradle [C].
5. Attach the ferrite core [E] to the cable. The length [F] must be 90 mm.
6. Attach the two clamps [G] as shown.
7. Line the cable [H] as shown (
x 2).
8. Connect the cable [H] to the "TEL" jack at the rear of the machine.
For the copier with a finisher
1. Do the handset installation procedure "for the copier without any finisher".

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
