Paper Feed
D086/D087 4-140 SM

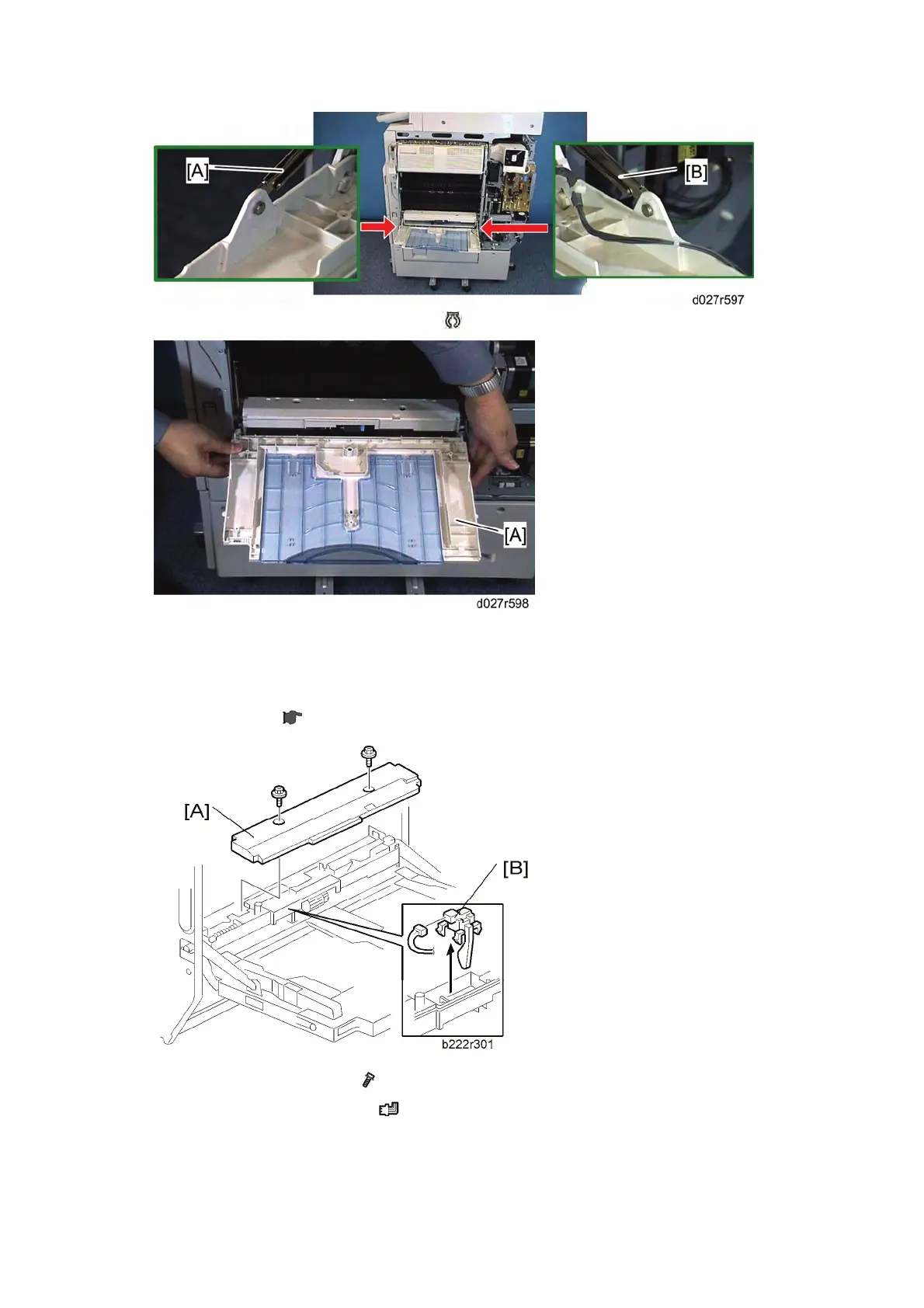

9. Release the front [A] and rear [B] arms (
x 1 each).
10. By-pass bottom tray [A]
4.12.8 BY-PASS PAPER END SENSOR
1. Right door cover ( p.4-136 "By-pass Bottom Tray")
2. By-pass feed unit cover [A] (
x 2).
3. By-pass paper end sensor [B] (
x 1, hook)
