Ricoh Aficio MP C3501

Laser Optics
SM 4-45 D086/D087
Replacement
and
Adjustment
Removing the old laser optics housing unit

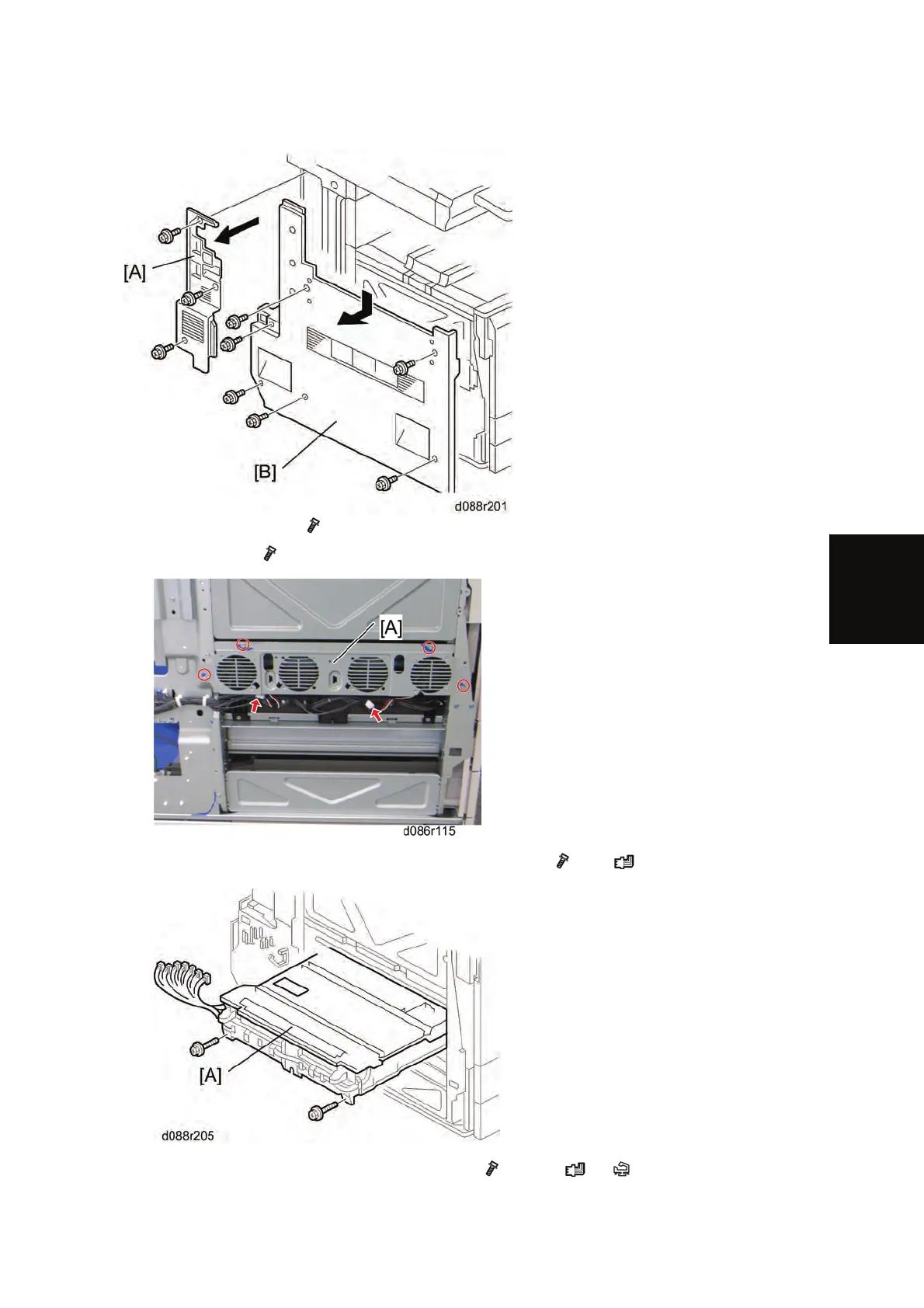

1. Controller cover [A] (
x 3)
2. Left cover [B] (
x 6)
3. Airflow fan bracket [A] for the laser housing optics unit (
x 4, x 2)
4. Remove the old laser optics housing unit [A] (
x 2, All 's, x 3)
