Ricoh Aficio MP C3501

Electrical Components
SM 4-161 D086/D087
Replacement
and
Adjustment

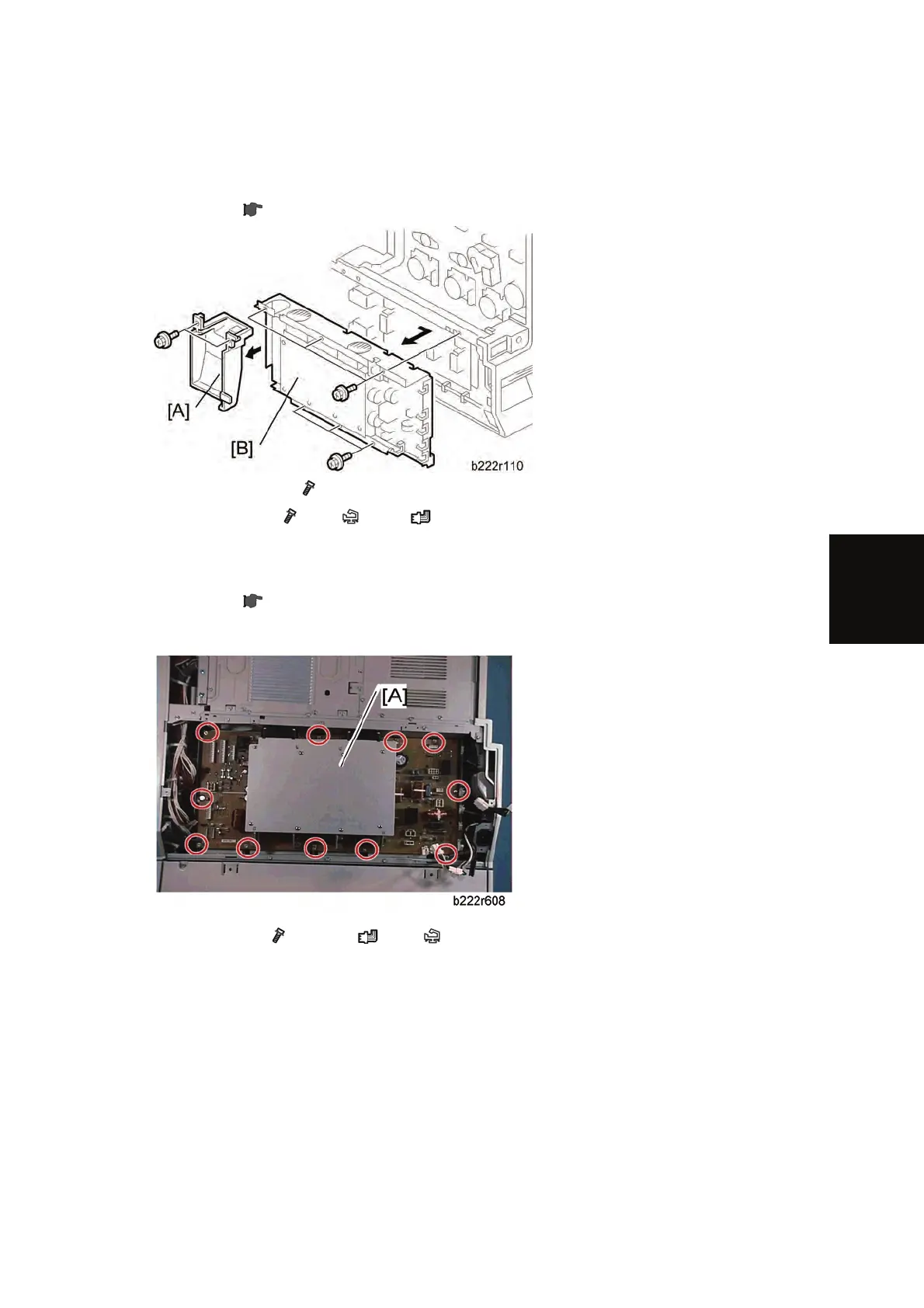

4.14.7 PSU
PSU bracket
1. Rear cover ( p.4-19)
2. Ventilation duct [A] (
x 2)
3. PSU bracket [B] (
x 6, x All, x All)
PSU board
1. Rear cover ( p.4-19)
2. Ventilation duct (see "PSU bracket")
3. PSU board [A] (
x 11, all s, all s)
