Ricoh Aficio MP C3501 Service Manual

Laser Optics
D086/D087 4-46 SM
Installing a new Laser Optics Housing Unit
 A new laser optics housing unit has a bracket to protect the LD units. When you
install the new unit, do not remove the bracket until near the end of the installation
procedure (the correct time is stated in the manual).
 This bracket protects a capacitor on the unit. If the bracket is removed too early, you
could break the capacitor on the corner of the main frame when you install the new
unit.

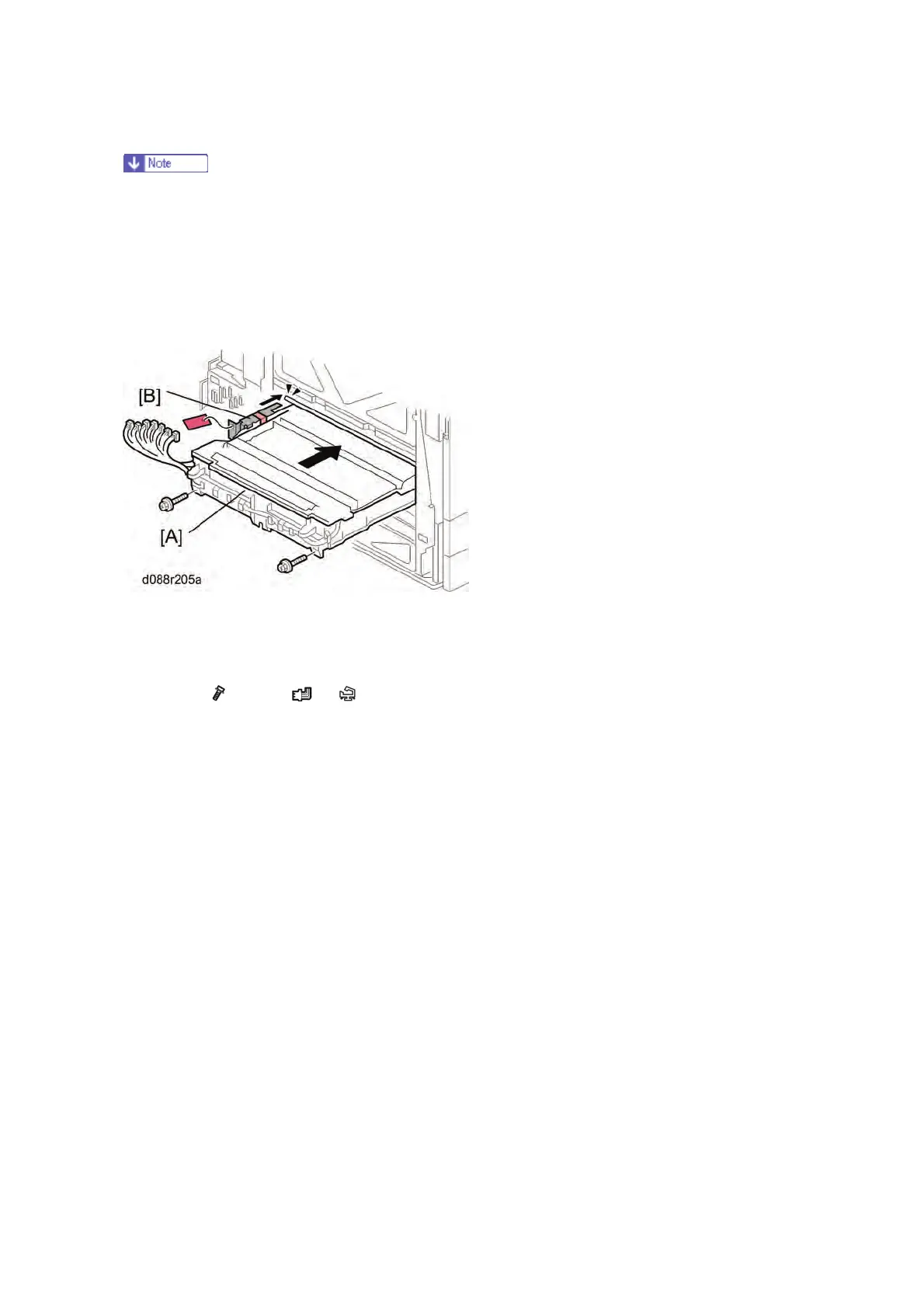

1. Push the new laser optics housing unit [A] slowly into the copier until the bracket [B]
bumps against the frame of the copier.
2. Remove the bracket [B], and then push the new laser optics housing unit fully into the
copier (
x 2, All 's, x 3).
3. Reassemble the machine.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
