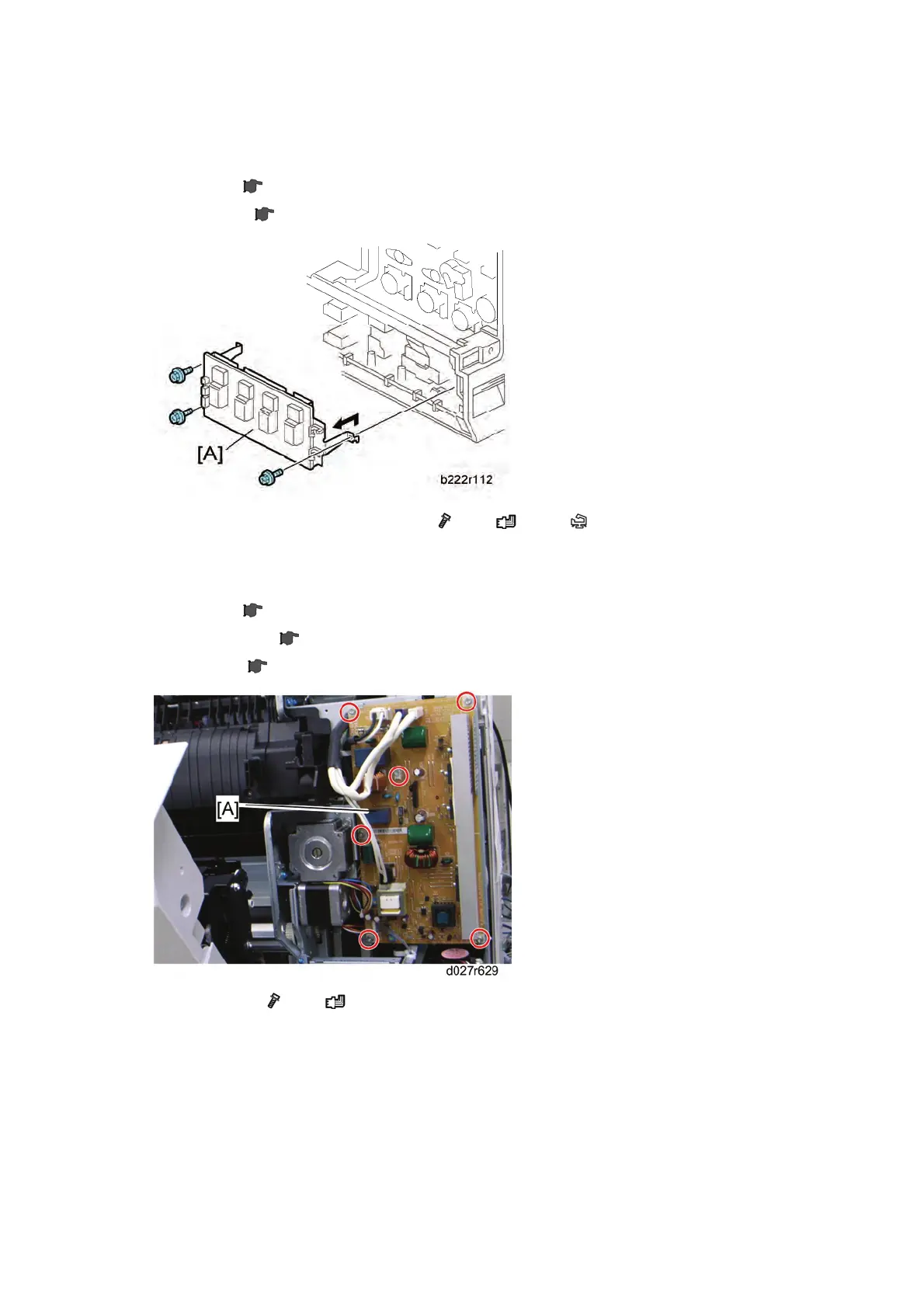

4.14.11 HIGH VOLTAGE SUPPLY BOARD BRACKET
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. High voltage supply board bracket [A] (
x 3, x All, x 2)
4.14.12 IH INVERTER
1. Rear cover ( p.4-19)
2. Right rear cover (
p.4-19)
3. Fusing duct (
p.4-120 "Fusing Fan")
4. IH inverter [A] (
x 6, x 5)
