Ricoh Aficio MP C3501

Fusing
SM 4-123 D086/D087
Replacement
and
Adjustment
When installing the fusing fan
Make sure that the fusing fan is installed with its decal facing the right side of the machine.
4.11.14 PAPER EXIT FAN
1. Open the right door.
2. Front right cover (
p.4-20 "Operation Panel")

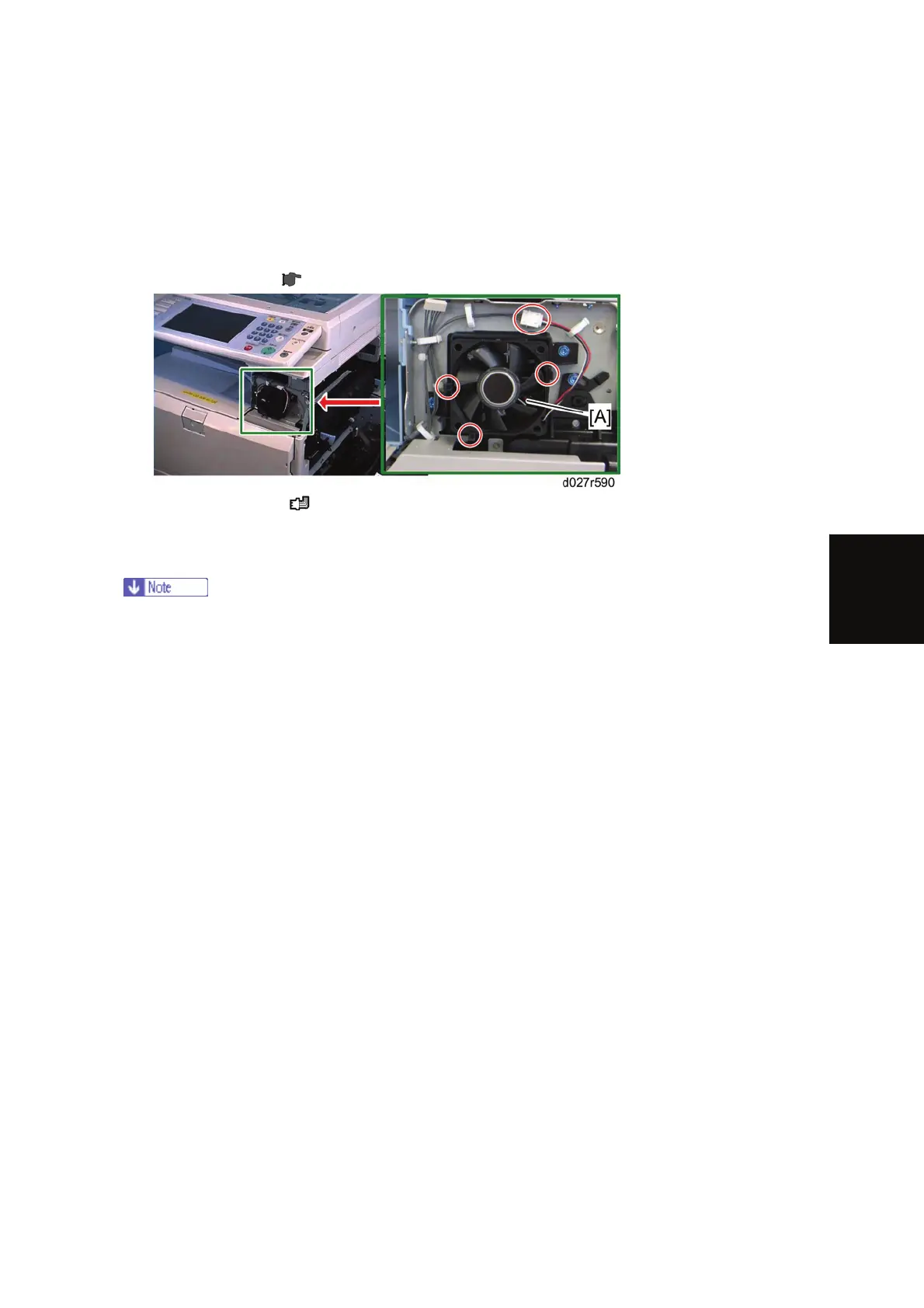

3. Paper exit fan [A] (
x 1, hook x 3)
When installing the paper exit fan
 Make sure that the paper exit fan is installed with its decal facing the rear of the
machine.
