Ricoh Aficio MP C3501 Service Manual

Scanner Unit
D086/D087 4-38 SM
Front Scanner Wire")

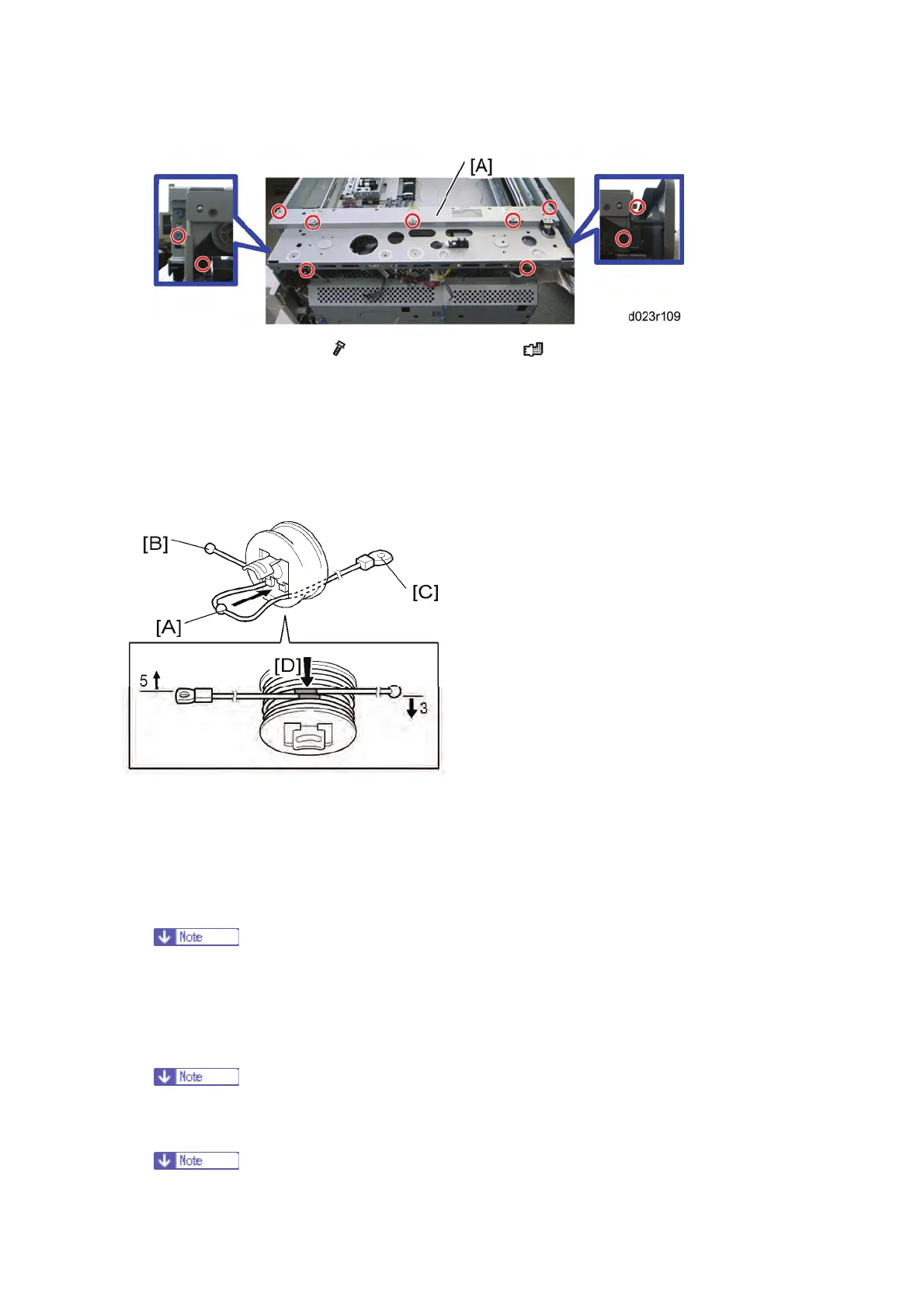

3. Scanner rear frame [A] (
x 9, ground screw x 2, x All)
4. Follow the steps 3 through 5 in the “Reinstalling the Front Scanner Wire” Section. You
can remove the rear scanner wire with the same manner for replacing the front scanner
wire.
Reinstalling the Rear Scanner Wire
1. Position the center ball [A] in the middle of the forked holder.
2. Pass the left end (with the ball) [B] through the drive pulley notch. Pass the right end (with
the ring) [C] through the drive pulley hole.
3. Wind the left end [B] clockwise (shown from the machine’s front) five times. Wind the
right end [C] counterclockwise three times.
 The two red marks [D] come together when you do this. Attach the wire to the
pulley with tape. This lets you easily handle the assembly at the time of
installation.
4. Install the drive pulley on the shaft.
 Do not attach the pulley on the shaft with the screw at this time.
5. Install the wire.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
