Bridge Unit BU3030 (D386)
D086/D087 2-60 SM
2.15.2 INSTALLATION PROCEDURE
Unplug the copier power cord before starting the following procedure.
1. If you will install the 1-bin tray (D536) in the machine, install the 1-bin tray before
you install the bridge unit (D386). This will make it easier for you to do the following
procedure.
2. If you will install a finisher (B408, B804 or B805) in the machine, install the finisher
after you install the bridge unit (D386).

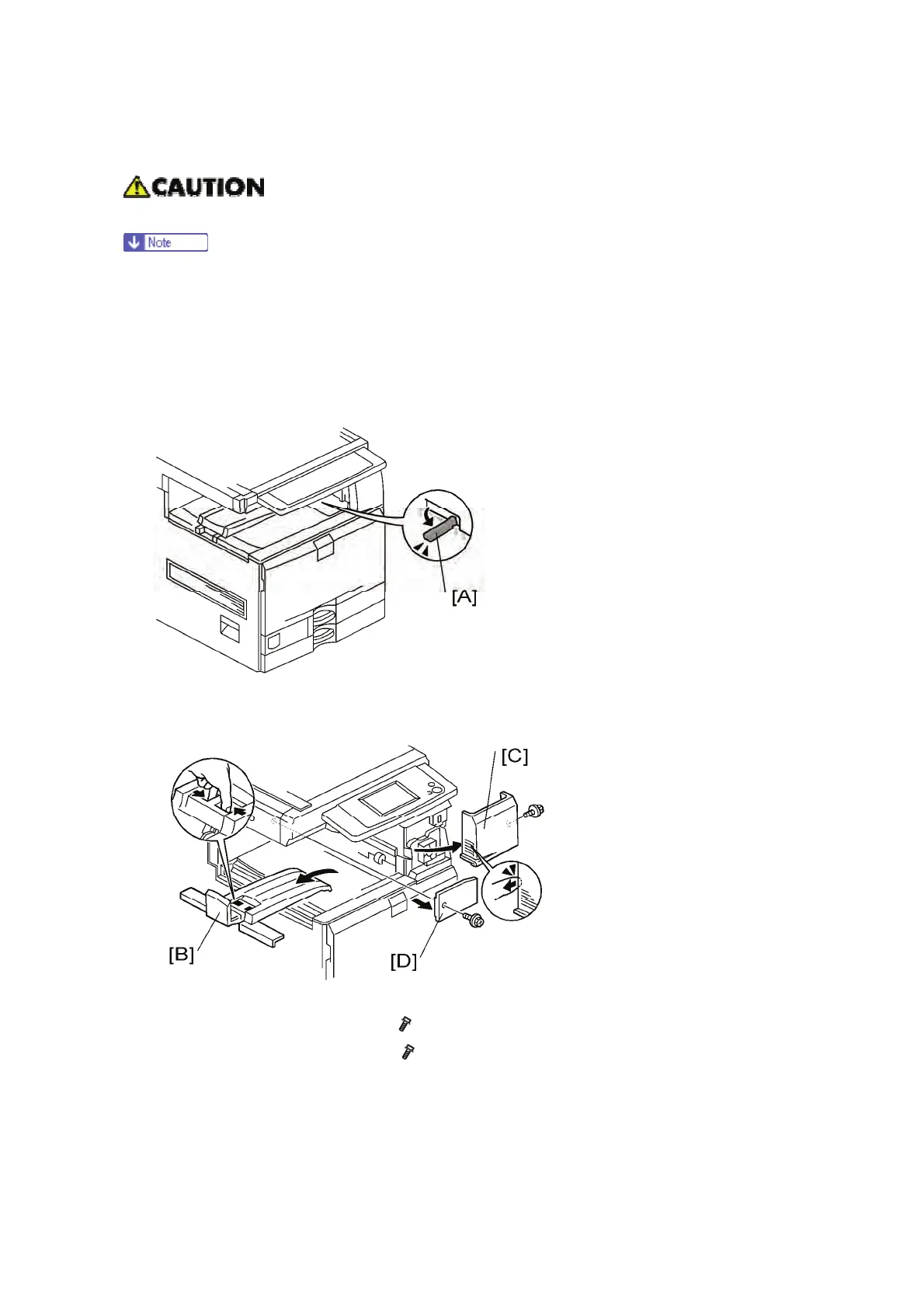

1. Remove all tapes.
2. If the sensor feeler [A] is out, fold it into the machine.
3. Open the right door of the machine.
4. Remove the inner tray [B].
5. Remove the front right cover [C] (
x 1).
6. Remove the connector cover [D] (
x 1).
