Ricoh Aficio MP C3501

Drive Unit
SM 4-83 D086/D087
Replacement
and
Adjustment

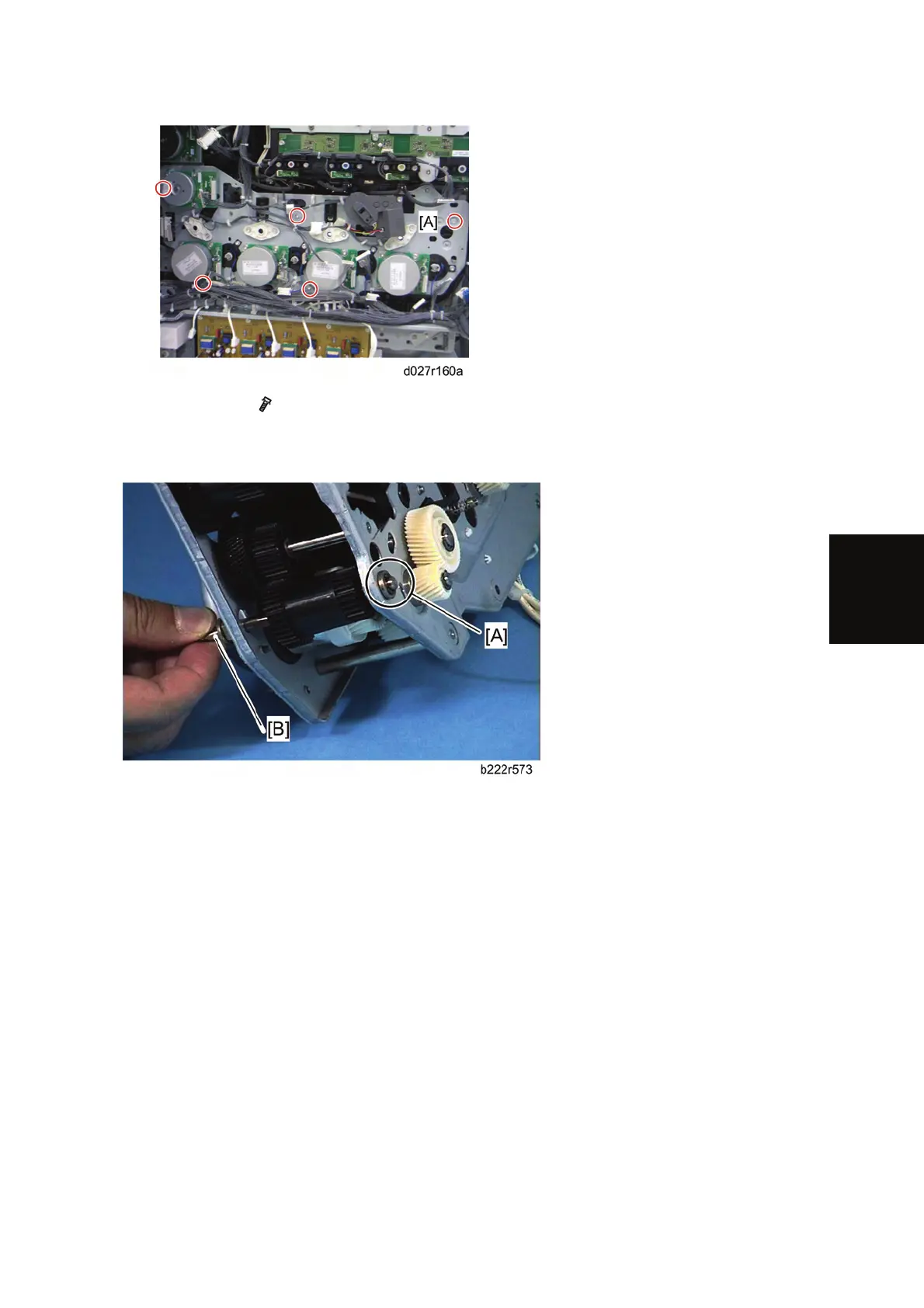

22. Gear unit [A] (
x 8)
When installing the drive unit
Make sure that the bushing [A] is fully set in the frame of the gear unit before installing the
timing belt and pulley to the shaft [B].
