Paper Feed
D086/D087 4-142 SM

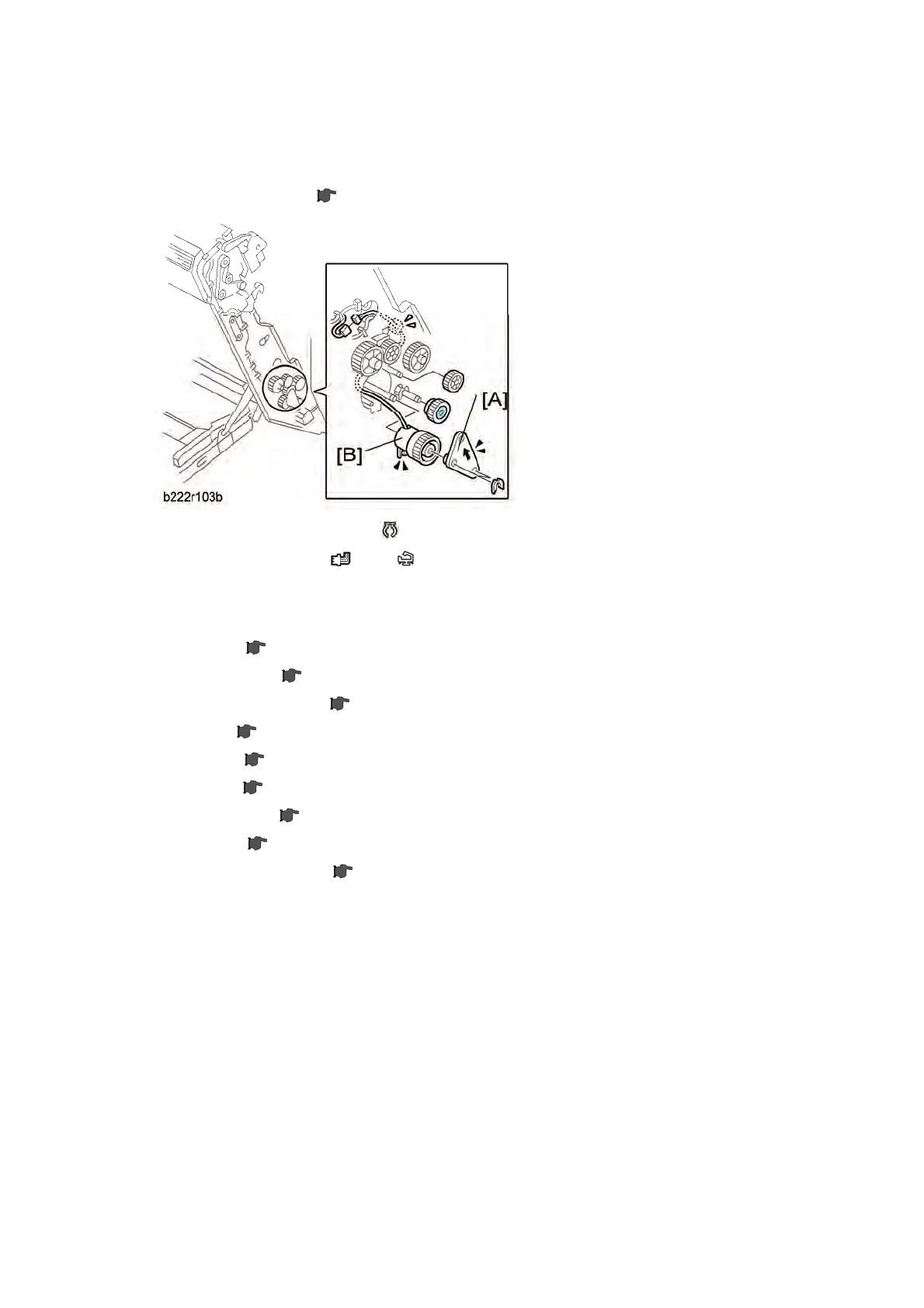

4.12.10 BY-PASS FEED CLUTCH
1. Open the right door.
2. Right door rear cover (
p.4-136 "By-pass Bottom Tray")
3. By-pass feed clutch holder [A] (
x 2)
4. By-pass feed clutch [B] (
x 1, x 1)
4.12.11 PAPER EXIT UNIT
1. Fusing Unit ( p.4-99)
2. Front right cover (
p.4-20 "Operation Panel")
3. Image transfer belt unit (
p.4-63)
4. Inner Tray (
p.4-21)
5. Thermopile (
p.4-123)
6. Rear cover (
p.4-19)
7. Right rear cover (
p.4-19)
8. Fusing duct (
p.4-120 "Fusing Fan")
9. Open the controller box (
p.4-153 "Controller Box").
