Ricoh Aficio MP C3501 Service Manual

Fusing
D086/D087 4-104 SM
4.11.4 FUSING EXIT GUIDE PLATE CLEANING PROCEDURE
The fusing exit guide plate requires cleaning maintenance every fusing unit maintenance
interval.
1. Fusing unit (
p.4-99)

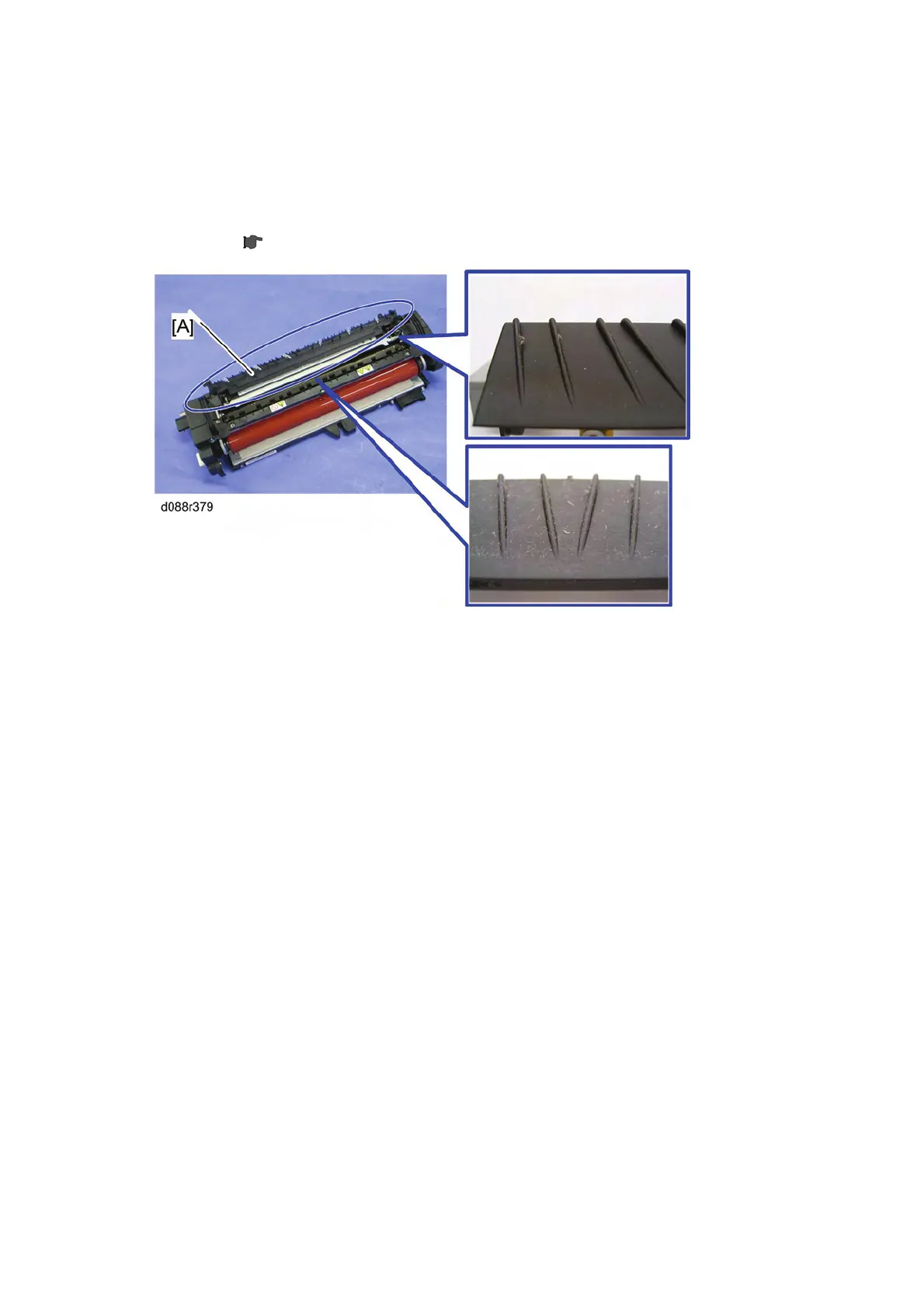

2. Open the exit guide plate [A].
3. Clean the exit guide plate with a dry cloth, and then clean the exit guide plate again with
a cloth moistened with alcohol at the points shown above.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
