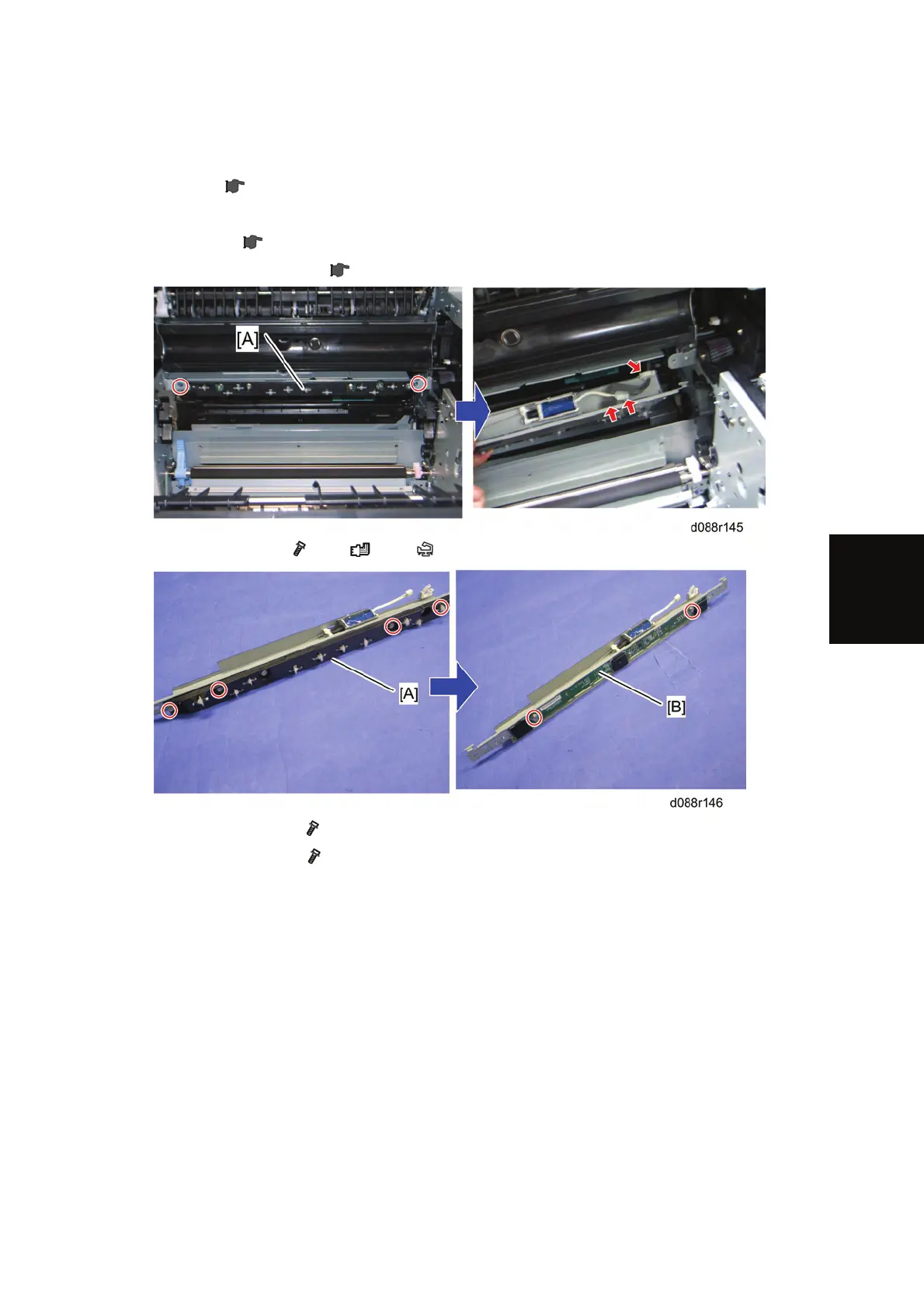

4.9.3 ID SENSOR BOARD
1. K PCDU ( p.4-49)
2. Open the right door.
3. Fusing unit (
p.4-99)
4. Image transfer belt unit (
p.4-63)
5. ID sensor unit [A] (
x 2, x 2, x 1)
6. ID sensor cover [A] (
x 4)
7. ID sensor board [B] (
x 2)
