Ricoh Aficio MP C3501 Service Manual

Product Overview
D086/D087 1-2 SM
1.2 PRODUCT OVERVIEW

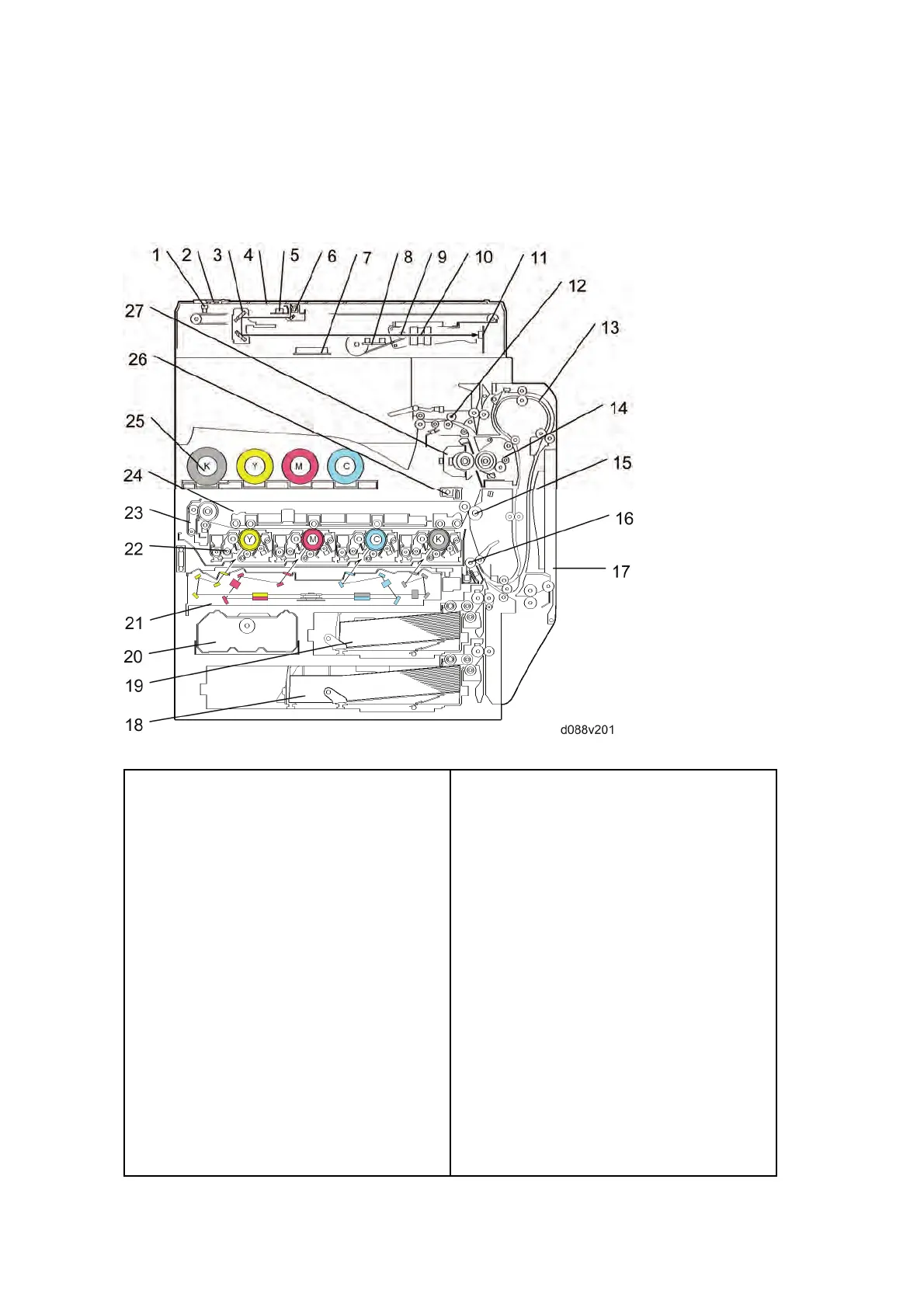

1.2.1 COMPONENT LAYOUT
1. Scanner HP sensor
2. ADF exposure glass
3. 2nd scanner (2nd carriage)
4. Exposure glass
5. 1st scanner (1st carriage)
6. Scanner lamp
7. Original width sensor
8. Original length sensor
9. Scanner motor
10. Lens block
11. Sensor board unit (SBU)
12. Decurler roller
13. Duplex unit
14. Fusing unit
15. Paper transfer roller
16. Registration roller
17. By-pass feed table
18. Tray 2
19. Tray 1
20. Toner collection bottle
21. Laser optics housing unit
22. PCDU (4 colors)
23. Image transfer belt cleaning unit
24. Image transfer belt unit
25. Toner bottle (4 colors)
26. ID sensor
27. IH coil unit

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
