Ricoh Aficio MP C3501

Electrical Components
SM 4-163 D086/D087
Replacement
and
Adjustment

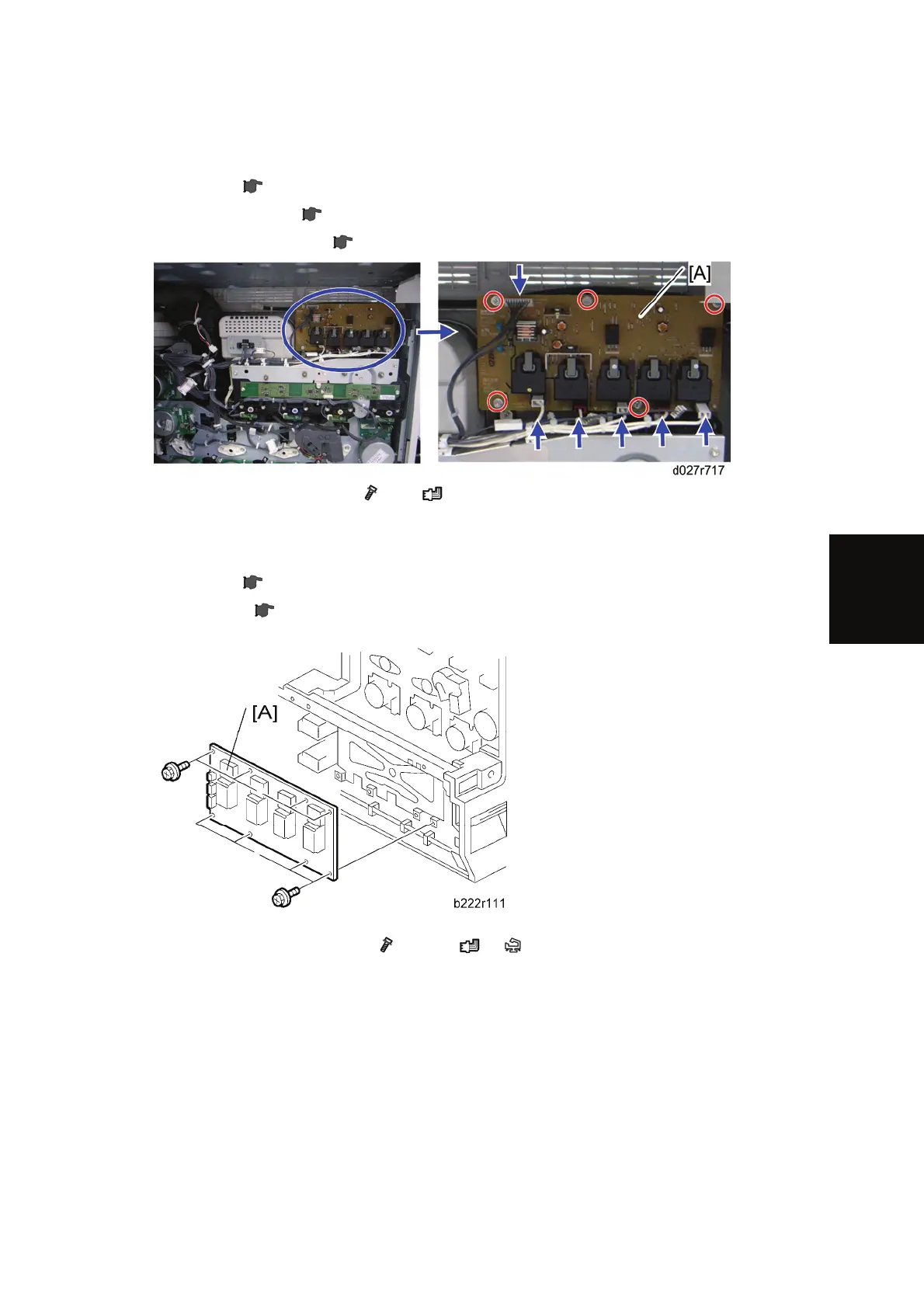

4.14.9 ITB POWER SUPPLY BOARD
1. Rear cover ( p.4-19)
2. Scanner rear cover (
p.4-26 "Exposure Lamp")
3. Open the controller box (
p.4-153 "Controller Box")
4. ITB power supply board [A] (
x 5, x 6)
4.14.10 HIGH VOLTAGE SUPPLY BOARD
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. High voltage supply board [A] (
x 8, All s, x 2)
