Ricoh Aficio MP C3501

Scanner Unit
D086/D087 4-34 SM

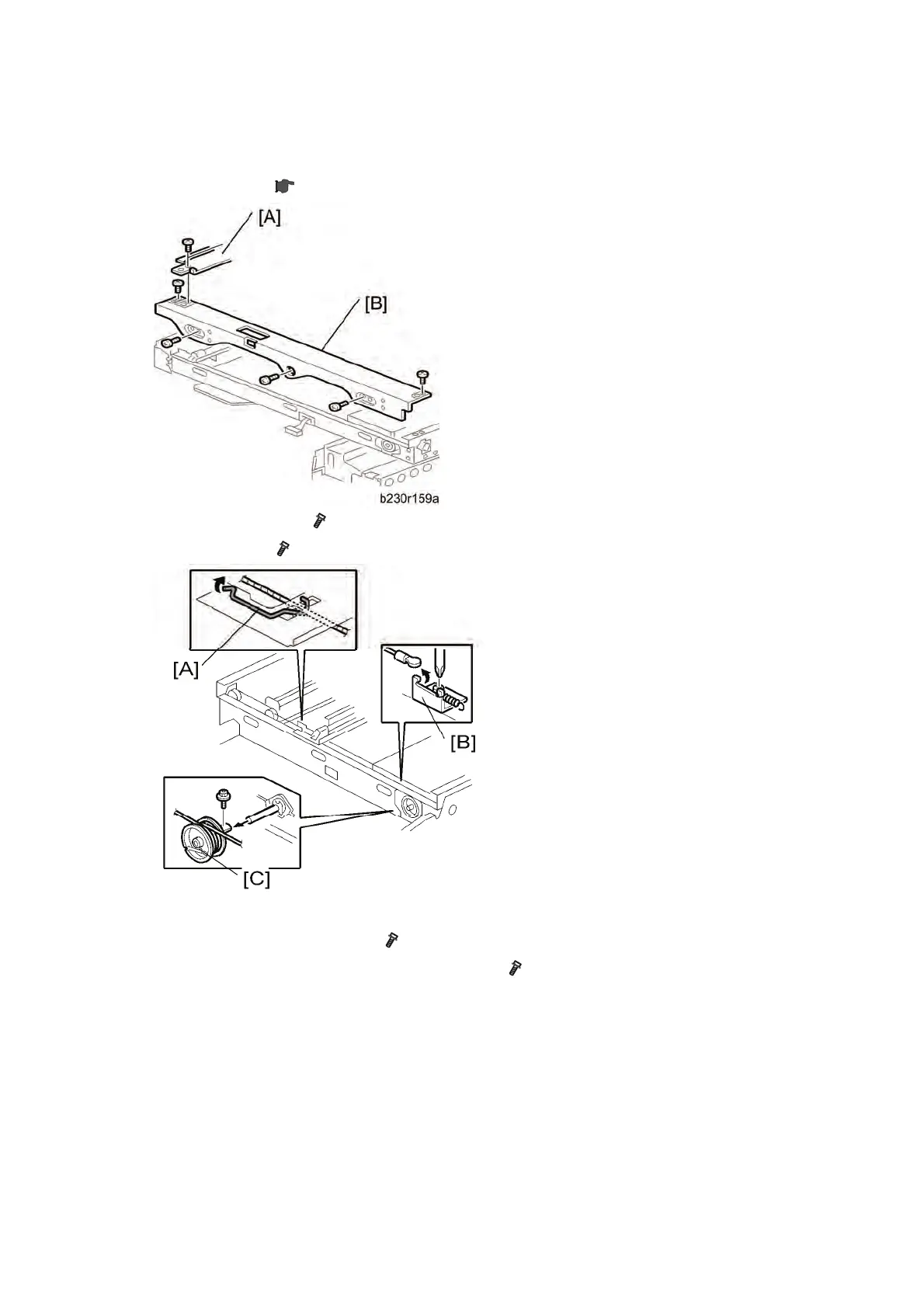

4.5.10 FRONT SCANNER WIRE
1. Exposure glass ( p.4-24)
2. Scanner left stay [A] (
x 3)
3. Front frame [B] (
x 5)
4. Front scanner wire clamp [A]
5. Front scanner wire bracket [B] (
x 1)
6. Front scanner wire and scanner drive pulley [C] (
x 1)
