Electrical Components
D542 6 SM
1.2.4 SIDE TRAY EXIT SENSOR
1. Sub and main output trays ( Sub and Main Output Trays)
2. Tray left front and rear covers (
Tray Left Front and Rear Covers)
3. Side tray (
Installation Procedure in the base copier manual)
4. Paper tray (
Side Tray Relay Sensor)

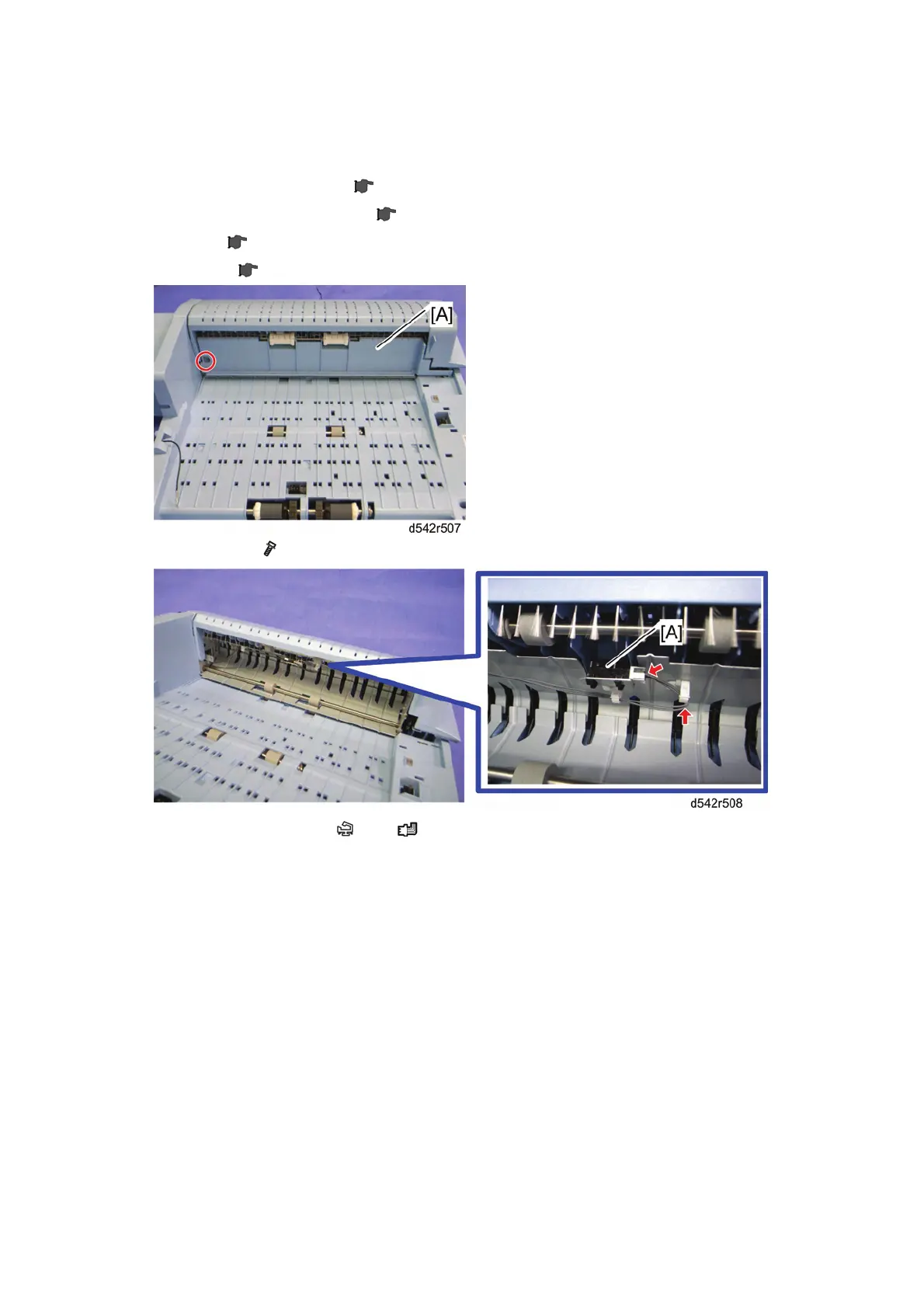

5. Exit guide [A] ( x 1)
6. Side tray exit sensor [A] (
x 1, x 1, hooks)
