Ricoh Aficio MP C3501 Service Manual

USB2.0/SD Slot Type F (D546)
SM 2-85 D086/D087
Installation
2.22.2 INSTALLATION PROCEDURE

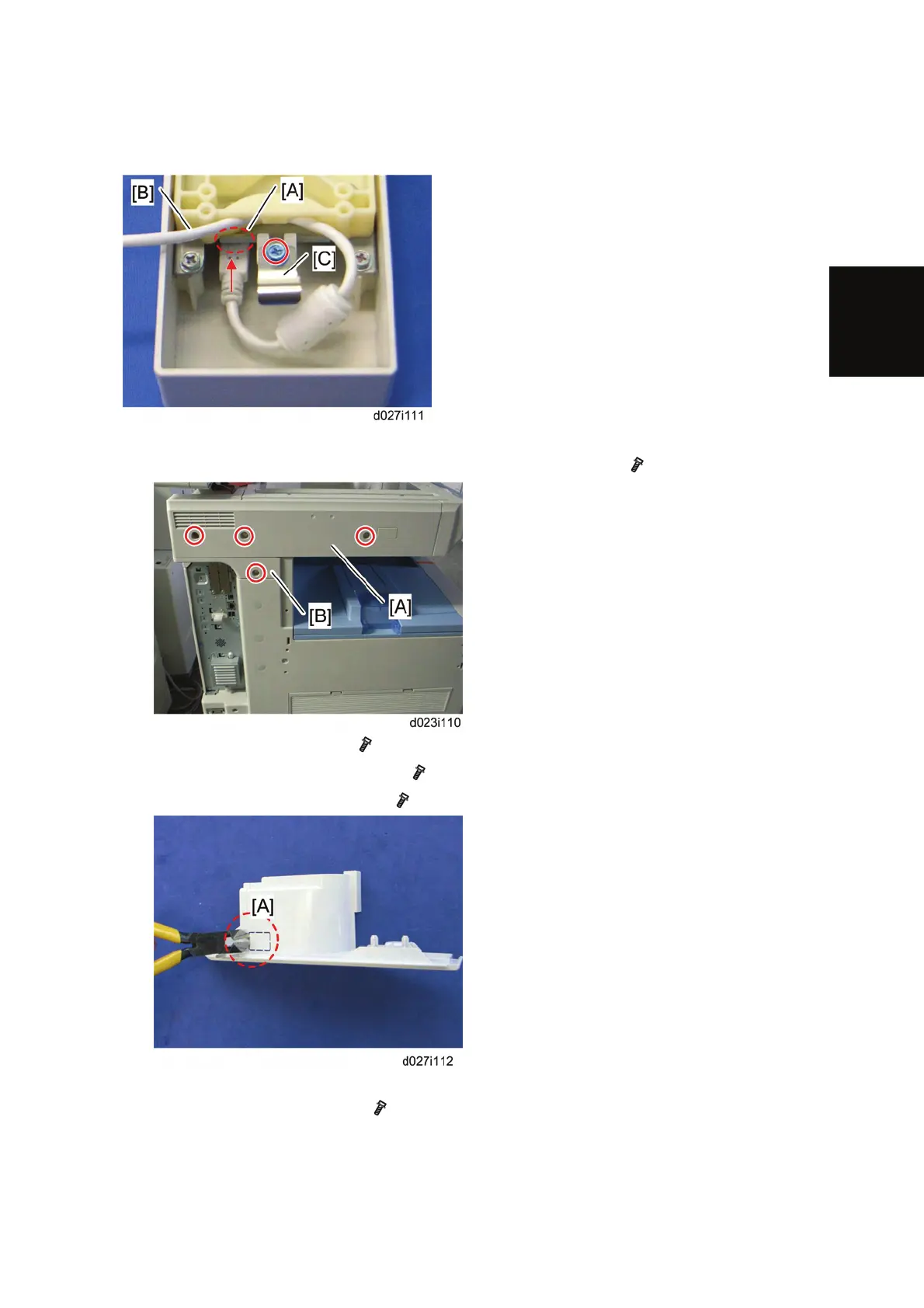

1. Connect the USB cable [B] to the USB slot [A] in the USB2.0/SD Slot as shown above.
2. Attach the ground plate [C] to the bracket of the USB2.0/SD Slot (
x 1: M3x6 blue).
3. Rear cover of the machine ( x 8)
4. Remove the scanner left cover [A] (
x 2).
5. Remove the left frame cover [B] (
x 1).
6. Remove the part [A] of the left frame cover with pliers or a similar tool.
7. Reinstall the left frame cover (
x 1).
