USB2.0/SD Slot Type F (D546)
D086/D087 2-86 SM

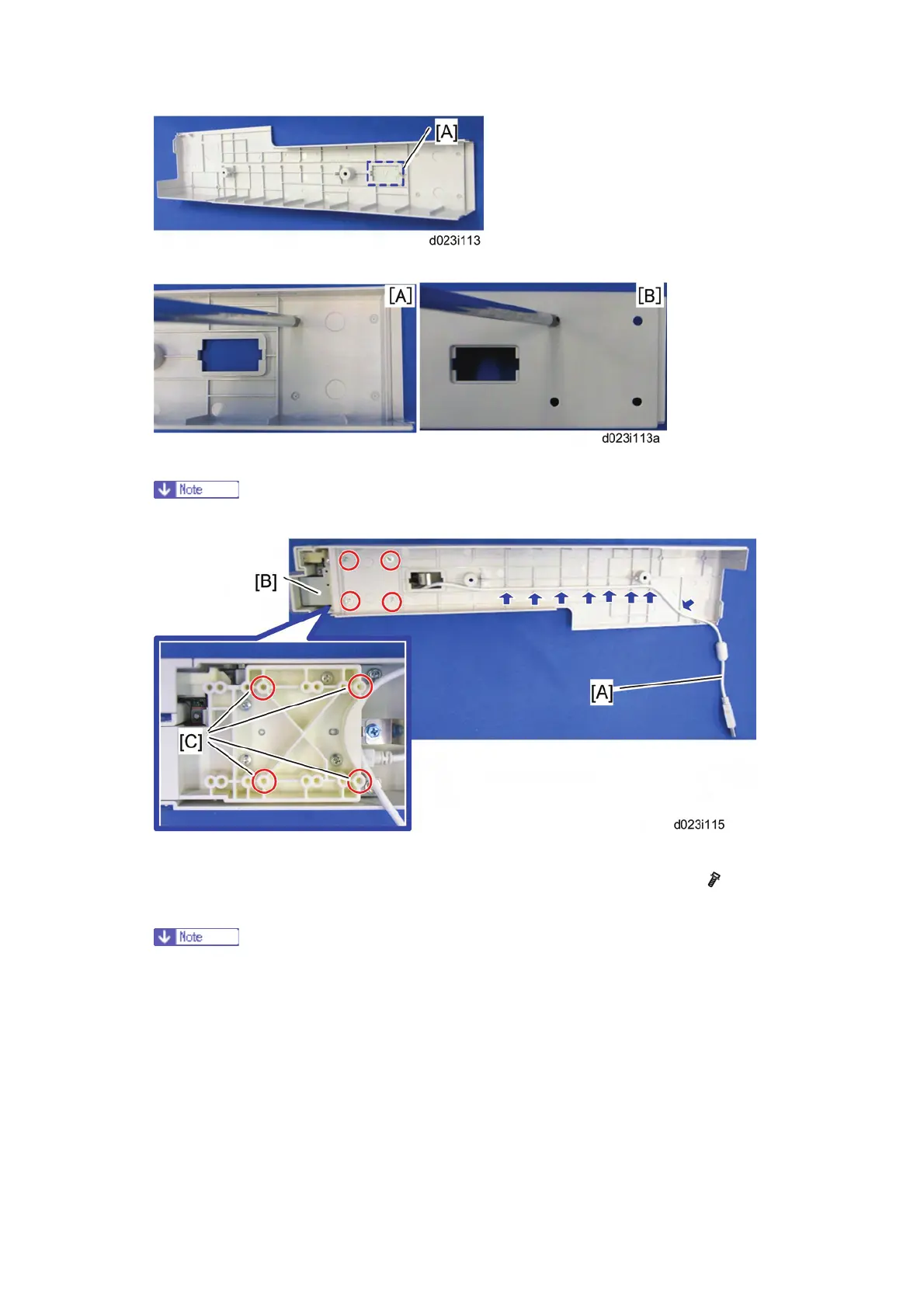

8. Remove the part [A] on the scanner left cover.
9. Make four holes in the scanner left cover with a screwdriver as shown [A].
Smooth the four holes in the scanner left cover as shown [B].
10. Route the USB cable [A] through the gaps in the left scanner cover.
11. Secure the USB2.0/SD Slot [B] with the left scanner cover as shown above (
x 4:
M3x8).
Use the screw holes [C] as shown above.
