Ricoh Aficio MP C3501

Scanner Unit
SM 4-27 D086/D087
Replacement
and
Adjustment

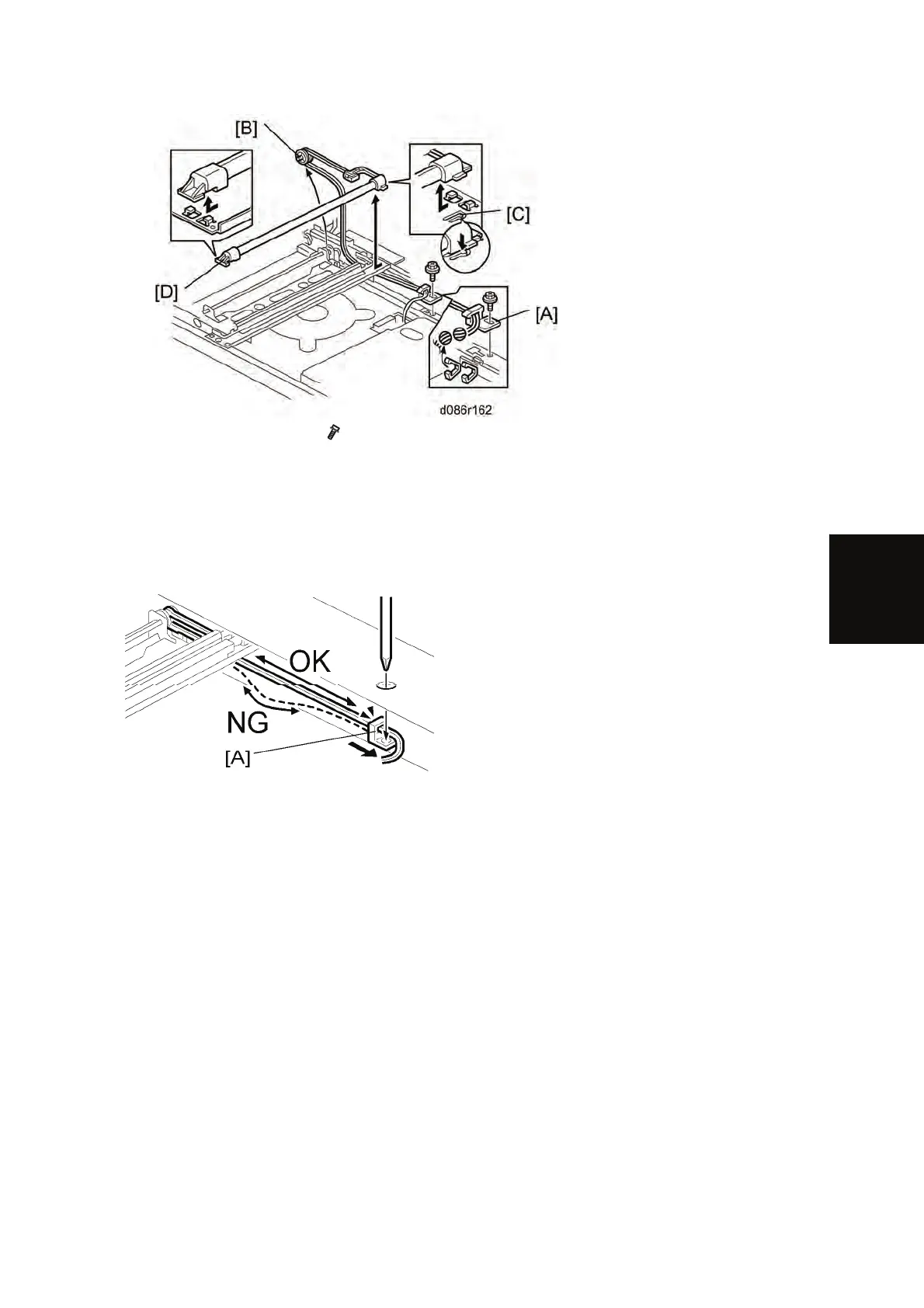

10. Release the clamp [A] (
x 1).
11. Remove the pulley [B].
12. Hold down the snap [C], and then slide the exposure lamp [D] to the front side.
13. Exposure lamp [D]
Reassembling
Run the cable so there is no slack. Slide the clamp [A] to adjust the cable slack.
