Anti-Condensation Heater Type A
D086/D087 2-100 SM
For Installing the Tray Heater in D387
1. Remove the rear cover of the mainframe ( step 1 in For Installing the Tray Heater in
D537).
2. Pull out the tray in the optional paper tray.

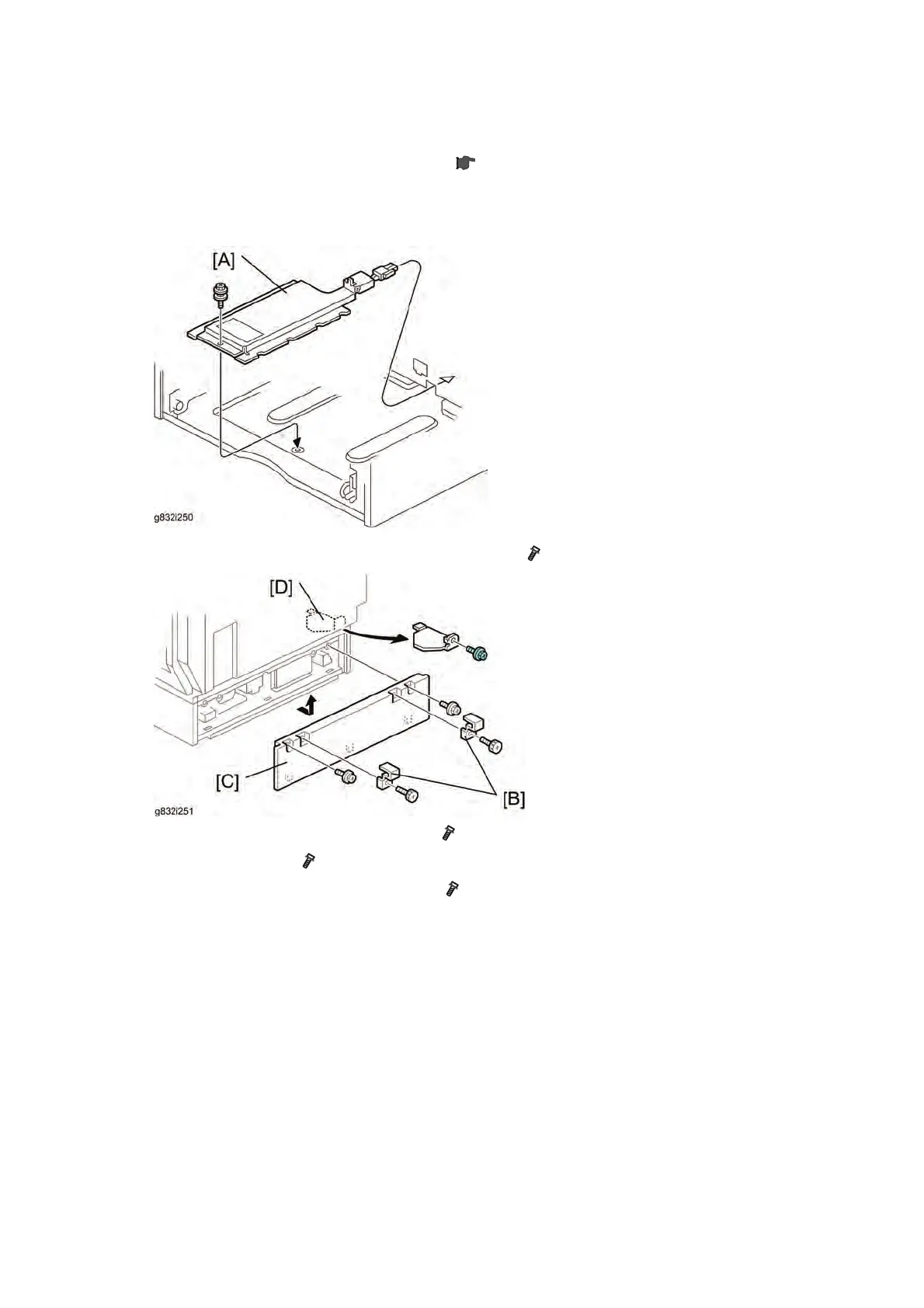

3. Install the tray heater [A] in the optional paper tray (
x 1).
4. Remove the two securing brackets [B] (
x 1 each), and then the rear cover [C] of the
optional paper tray (
x 2).
5. Remove the harness cover bracket [D] (
x 1).
To Next Page
