Anti-Condensation Heater Type A
SM 2-101 D086/D087
Installation

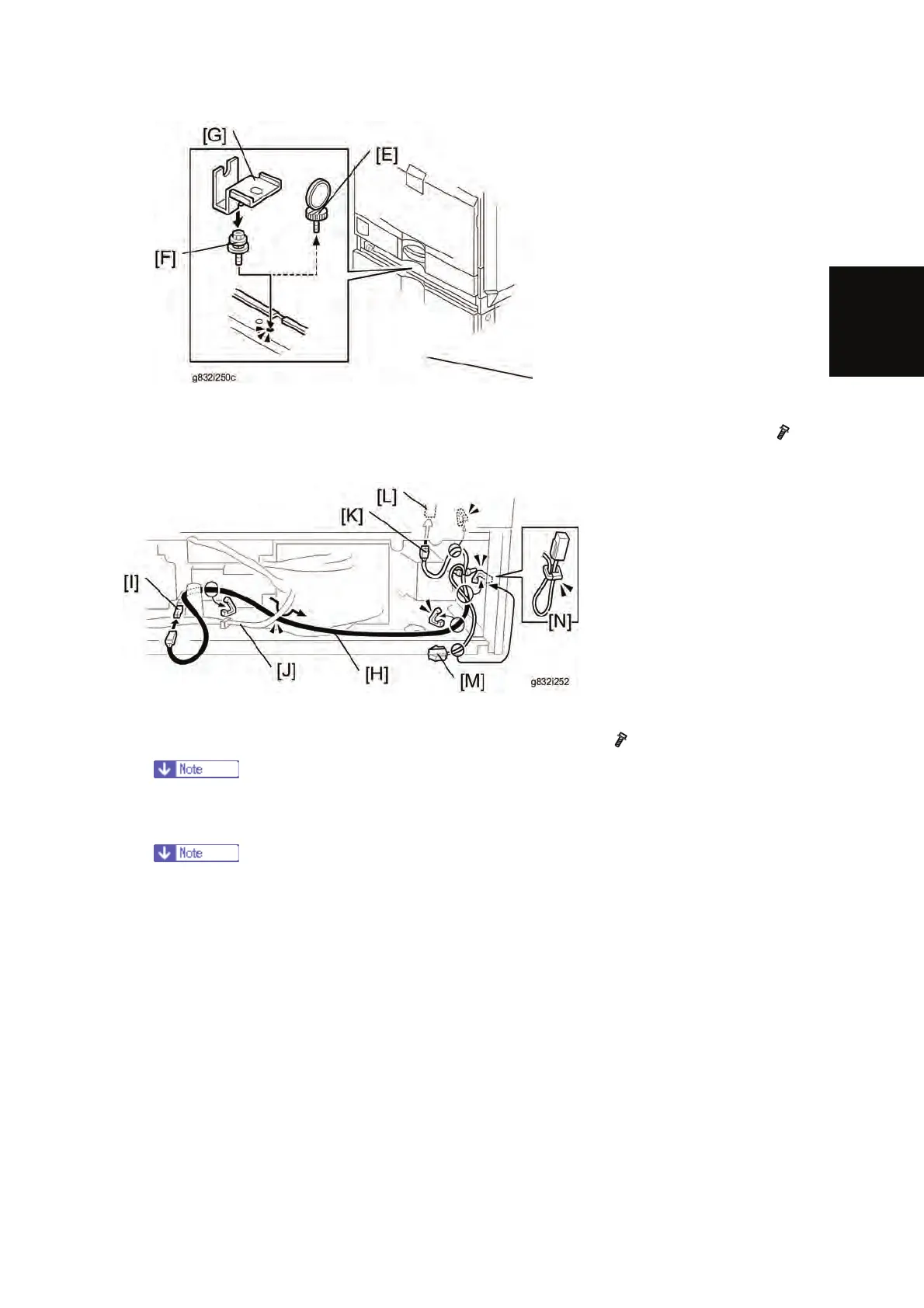

6. Pull out tray 2 from the mainframe.
7. Replace the shoulder screw [E] with the washer screw [F], using securing bracket [G] (
x 1).
1. Connect the harness [H] to the connector [I] of the tray heater.
2. Route the harness [H] as shown and clamp it with four clamps (
x 4).
Make sure that the harness [H] is placed below the harness [J].
3. Connect one harness [K] of the two-way harness to the connector [L] of the mainframe.
The harness [K] of the two-way harness, which has two binds, is for the
connector of the mainframe. The harness [M], which has one bind, is for another
optional paper feed unit.
4. Clamp the other harness [M] of the two-way harness as shown [N] if you do not install
another optional paper feed unit.
5. Reassemble the mainframe and optional paper tray.
