Drive Unit
D086/D087 4-78 SM
4.10 DRIVE UNIT

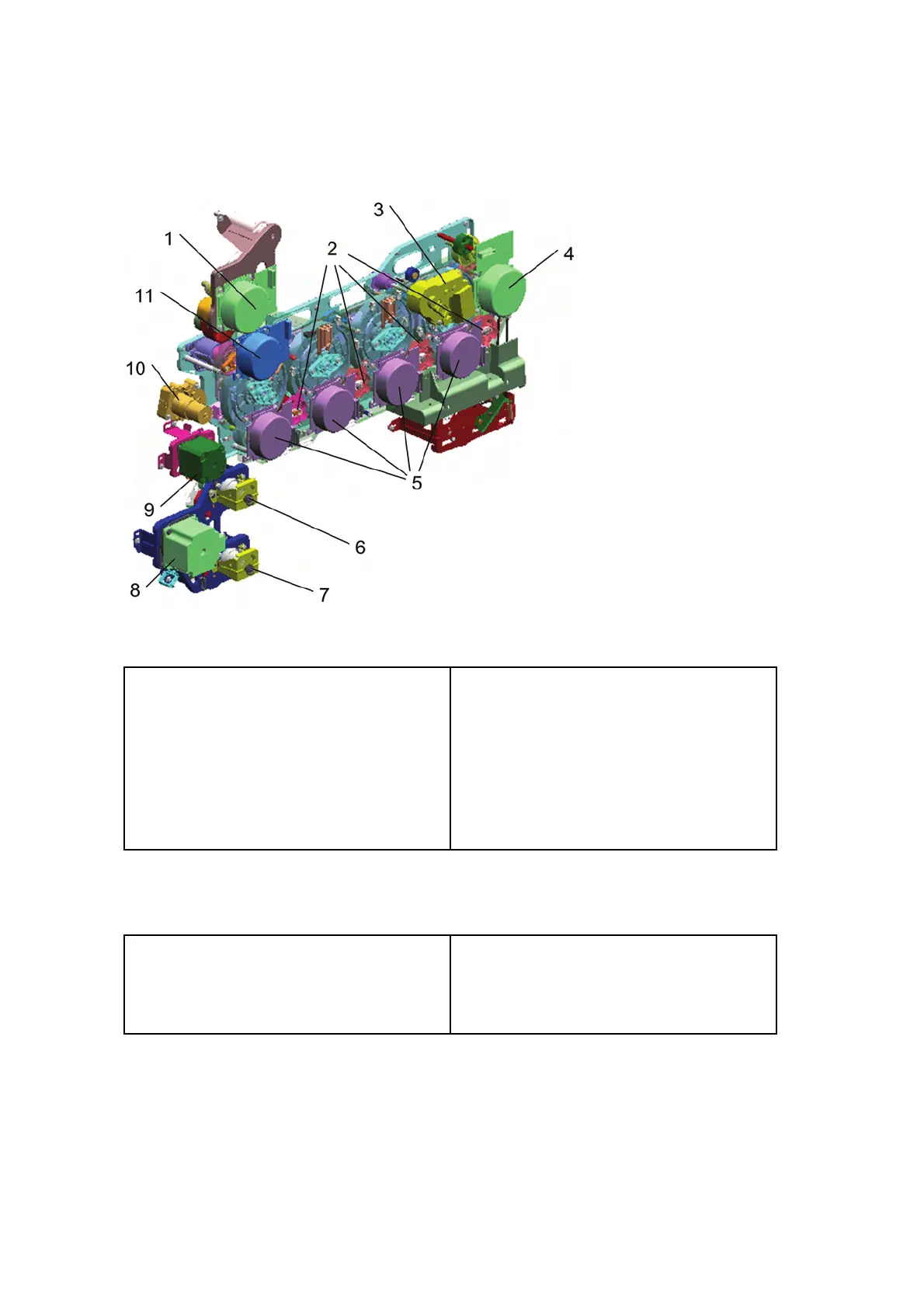

The drawing above shows the drive unit layout.
1. Fusing/paper exit motor
2. Development clutches
3. Image transfer belt contact motor
4. Toner transport motor
5. Drum/Development drive motors
6. Paper feed clutch – Tray 1
7. Paper feed clutch – Tray 2
8. Paper feed motor
9. Registration motor
10. Paper transfer contact motor
11. ITB drive motor
There are some motors and clutches that are not shown in the above drawing:
 Tray lift motor 1 and 2
 Duplex inverter motor
 Duplex/By-pass Motor
 Junction gate 1 motor
 Shutter motor
 By-pass clutch
