Ricoh Aficio MP C3501 Service Manual

Fusing
SM 4-115 D086/D087
Replacement
and
Adjustment

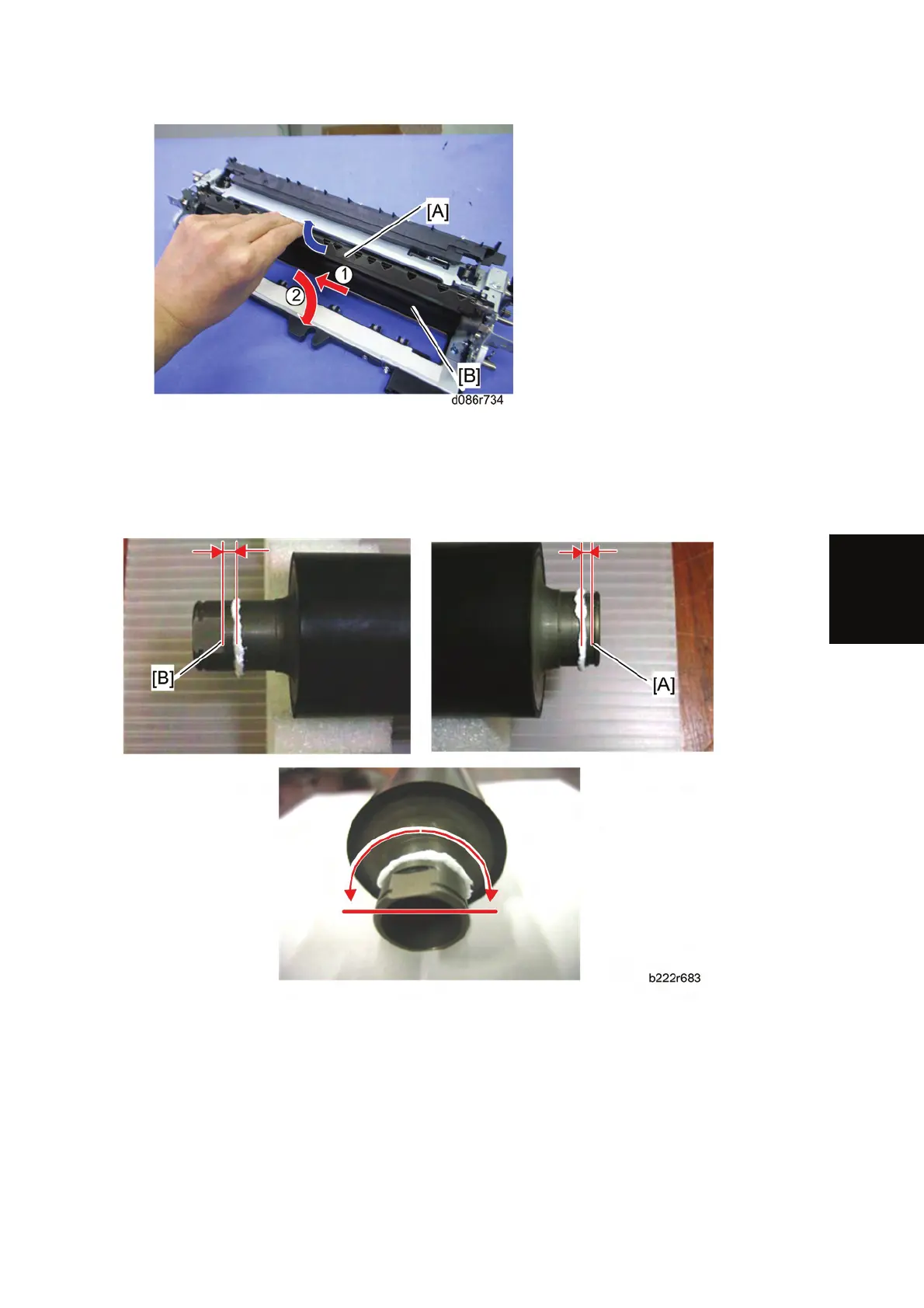

9. Keep the pressure roller stripper plate [A] open.
10. Pressure roller [B]
When re-installing the pressure roller
1. Apply "Barrierta S552R" to the front shaft of the pressure roller at 2 mm from the notch
[A], and to the rear shaft of the pressure roller at 2 mm from the edge [B]. (Apply the
lubricant to half of the circumference of the pressure roller, as shown in the lower of the
three above diagrams.)
