Ricoh Aficio MP C3501 Service Manual

Fusing
D086/D087 4-116 SM

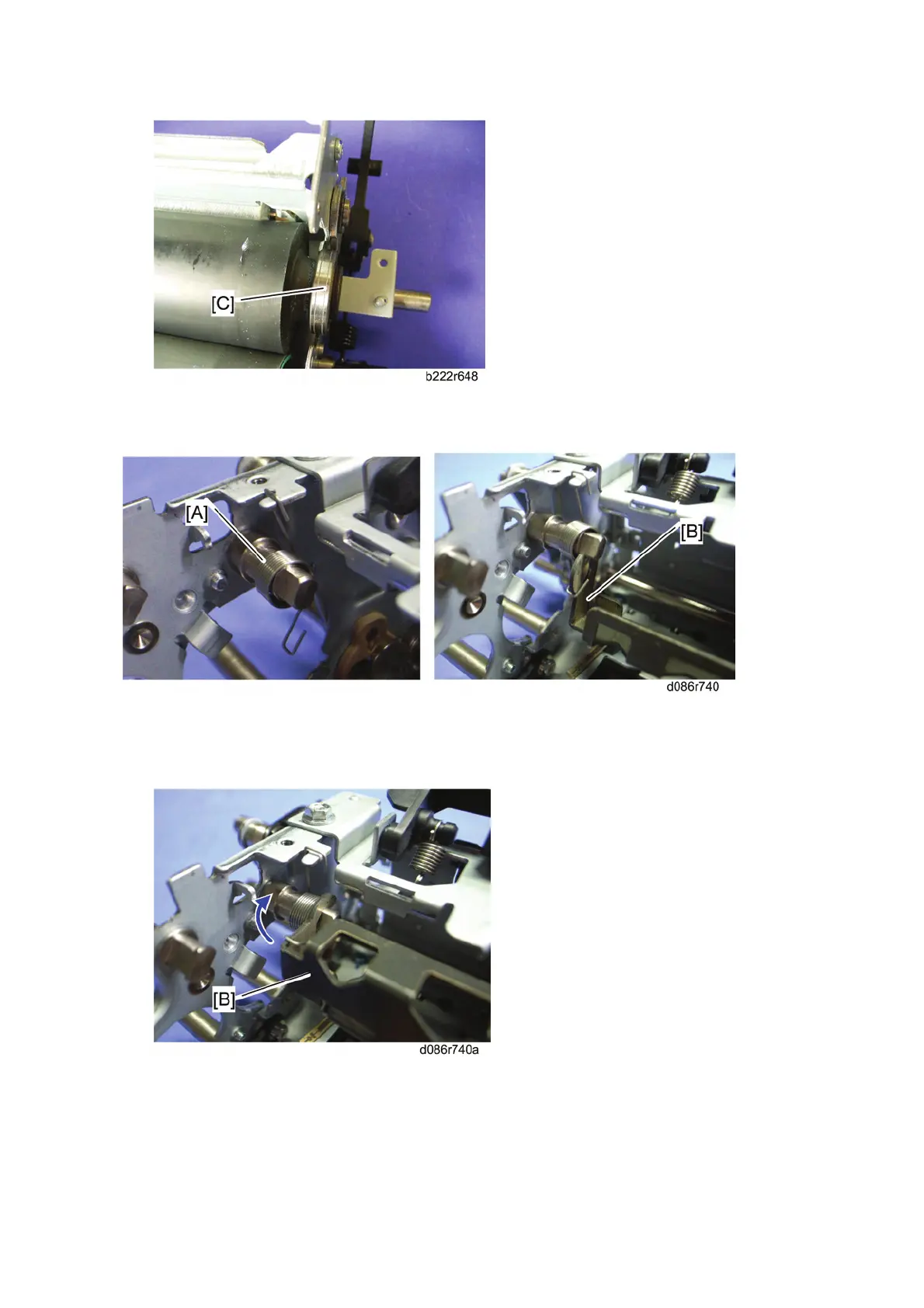

2. Make sure that pressure roller bearing [C] at the front side is set as shown above.
Pressure Roller Stripper Plate Installation
When reinstalling the pressure roller stripper plate:
1. Set the springs [A] (front and rear) correctly as shown above.
2. Install the pressure roller stripper plate [B] in the fusing unit frame as shown above.
3. Turn the pressure roller stripper plate [B].
4. Hold the pressure roller stripper plate, and then install the pressure roller.
 The pressure roller stripper plate is not supported before installing the pressure roller
in the fusing unit frame. If you stop holding, the pressure roller stripper plate can fall
