Ricoh Aficio MP C3501 Service Manual

STAPLER MECHANISM
B408 22 SM

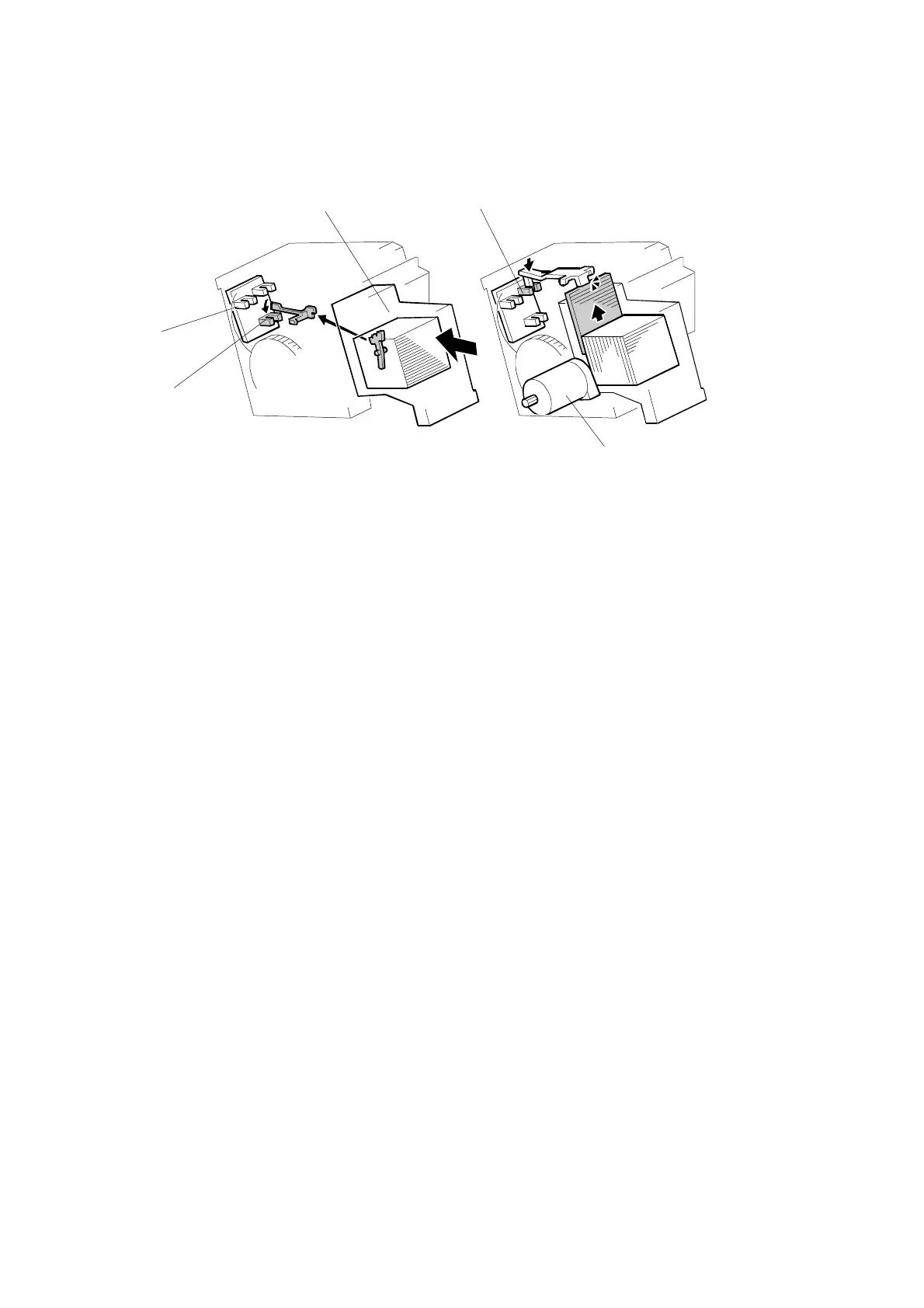

4.11 STAPLER MECHANISM
The staple hammer motor [A] drives the staple hammer.
The staple sheet sensor [B] detects the leading edge of the staple sheet at the
stapling position to prevent the hammer from operating if there are no staples at
the stapling position.
If there is no staple cartridge in the stapler unit or no staples in the staple cartridge,
staple end is indicated on the operation panel. The stapler sensor [C] detects this.
The stapler rotation HP sensor [D] checks whether the staple hammer mechanism
returns to home position after each stack has been stapled.
When excessive load is applied to the staple hammer motor, the copier detects a
staple jam. When a staple jam has occurred, the jammed staple is inside the staple
cartridge [E]. Therefore, the jammed staple can be removed easily after pulling out
the staple cartridge.
B408D116.WMF
[A]
[E]
[C]
[B]
[D]

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
