Fusing
D086/D087 4-120 SM
4.11.11 PRESSURE ROLLER THERMOSTAT

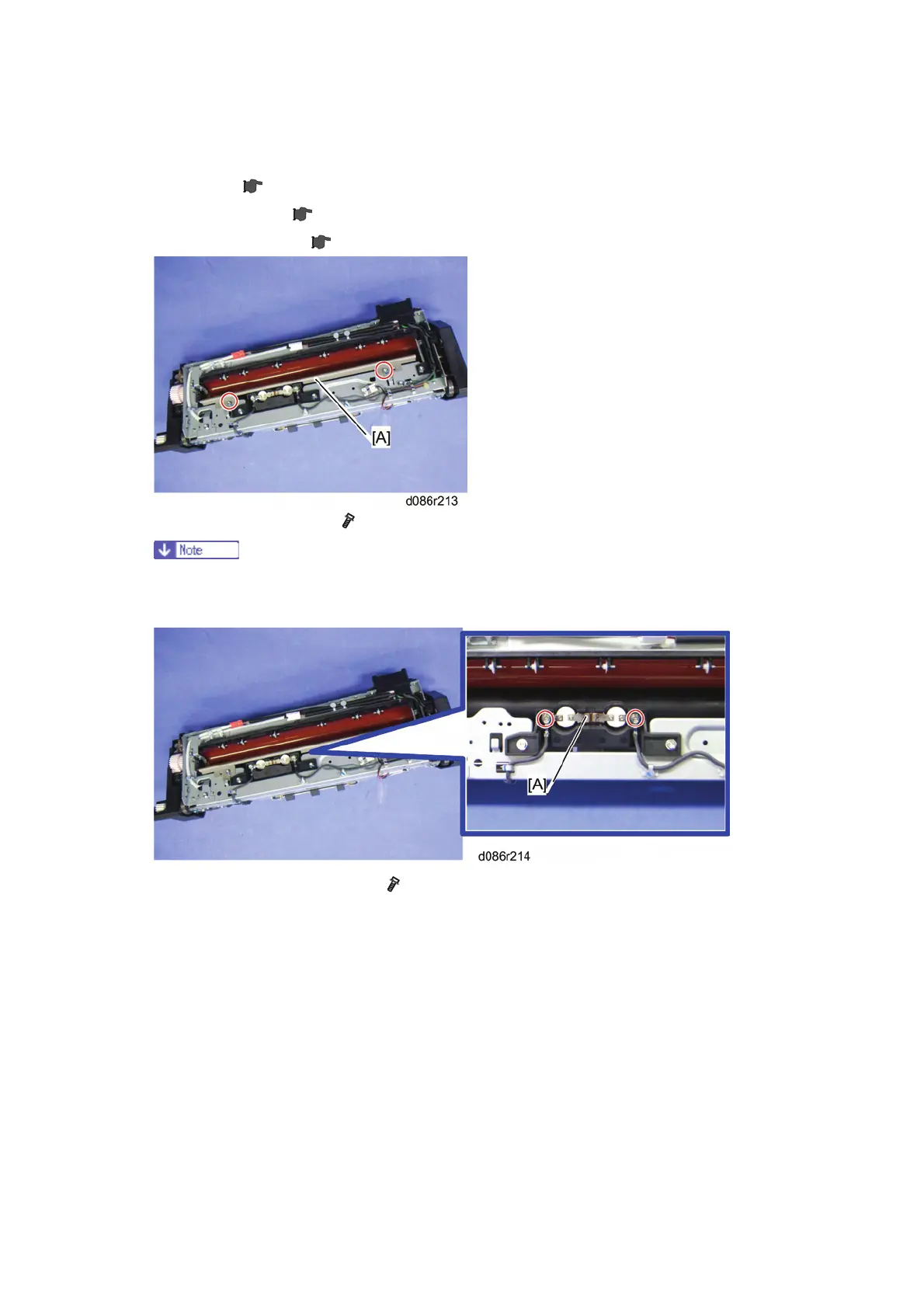

1. Fusing unit ( p.4-99)
2. Fusing right cover (
p.4-103 "Heating Roller and Heating Roller Bearing")
3. Fusing bottom cover (
p.4-117 "Heating Roller Thermistor")
4. Entrance guide plate [A] (
x 2)
The entrance guide plate must be removed with the orientation of the fusing unit
as shown above, to protect the surface of the heating roller from damage.
5. Pressure roller thermostats [A] (
x 4)
