Ricoh Aficio MP C3501

Paper Feed
SM 4-131 D086/D087
Replacement
and
Adjustment
4.12 PAPER FEED
4.12.1 PAPER FEED UNIT
1. Rear cover ( p.4-19)
2. Right rear cover (
p.4-19)
3. Duplex unit (
p.4-143)
4. Pull out tray 1 and tray 2.

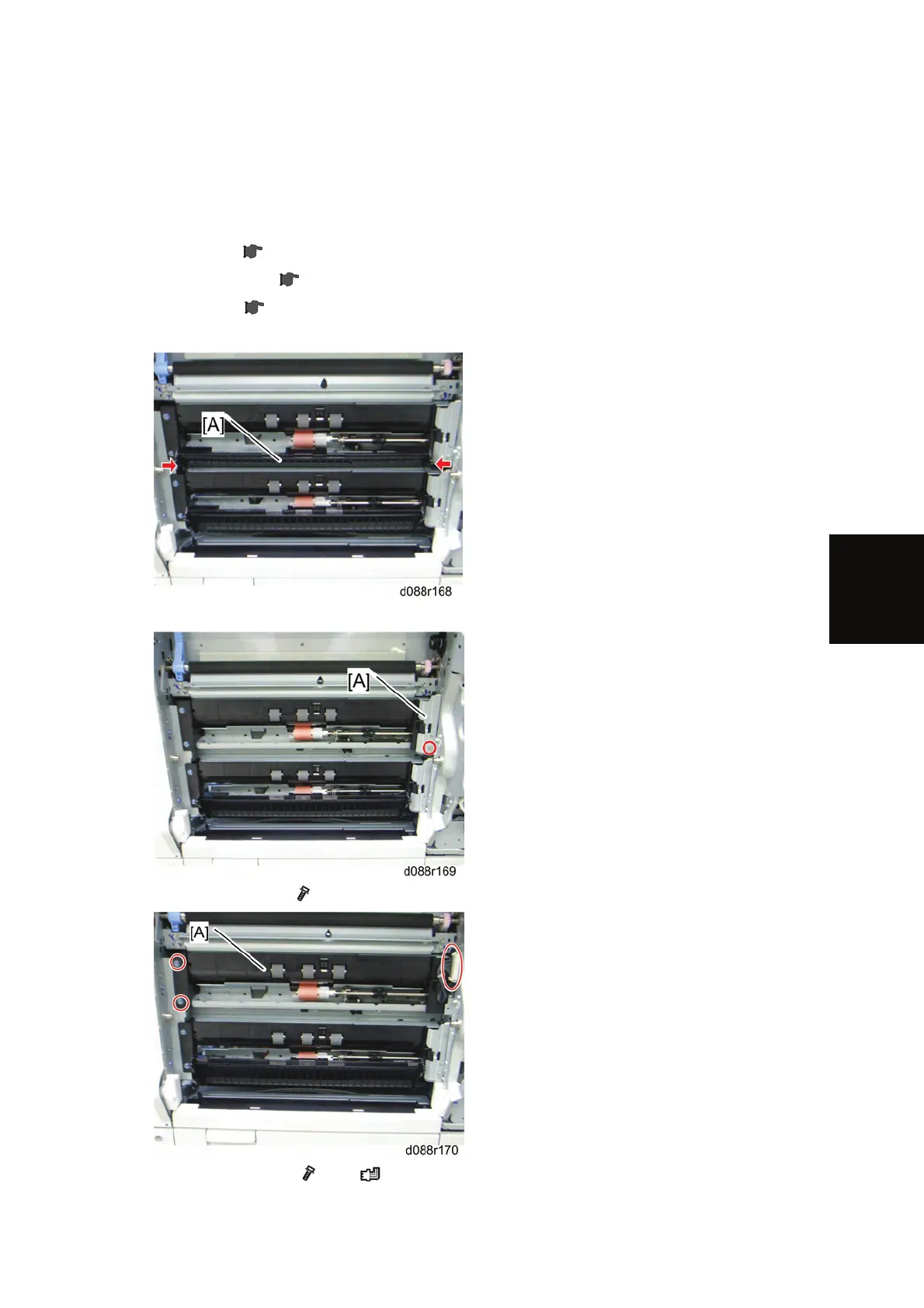

5. Paper guide plate [A] (tab x 2)
6. Harness cover [A] (
x 1)
7. Paper feed unit [A] (
x 2, x 1)
