Ricoh Aficio MP C3501

1000-Sheet
Finisher
B408
MOTORS AND SENSORS
SM 5 B408
1.4 MOTORS AND SENSORS

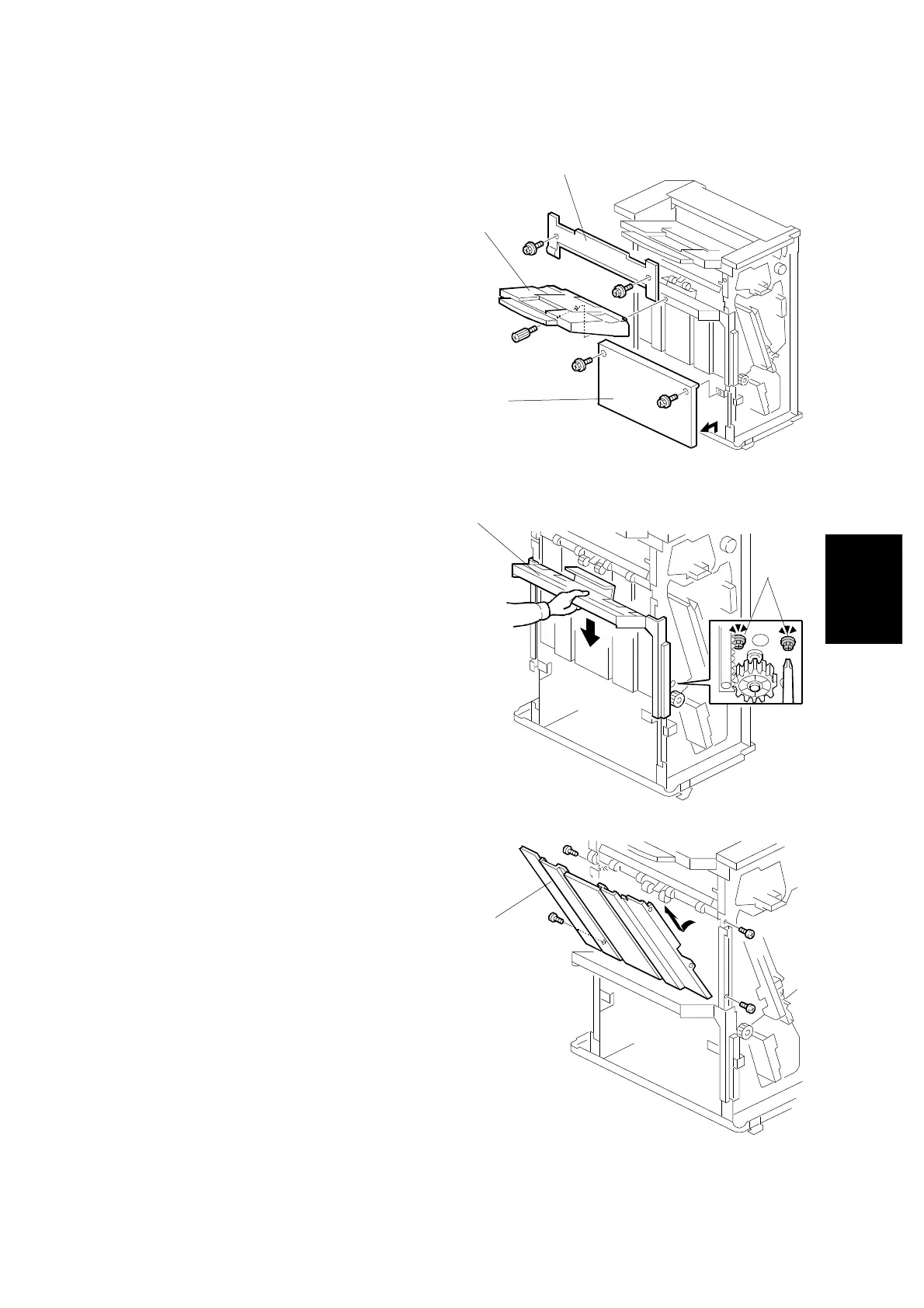

1.4.1 PREPARATION
1. Front cover and inner cover (

1.2)
2. Upper side cover [A] (

x 2)
3. Upper tray [B] (

x 1)
4. Lower side cover [C] (

x 2)
5. Loosen the 2 screws [D].
6. Lower the lower tray guide plate [E].
7. Guide plate [F] (

x 4)
B408R116.WMF
B408R117.WMF
B408R118.WMF
[A]
[B]
[C]
[D]
[E]
[F]
